Aerogel Supercritical CO2 Drying Machine 280L 200kw 1500L/H
Contact Person : Francis Li
Phone Number : +86 15085632682
WhatsApp : +8615085632682
Minimum Order Quantity : | 1set | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Metal frame & skin | Delivery Time : | 3months |
Payment Terms : | T/T | Supply Ability : | 20 sets per year |
Place of Origin: | Zunyi City China | Brand Name: | Supercritical CO2 Extraction Machine |
---|---|---|---|
Certification: | ASME CE PED | Model Number: | SCE 1000L-3-750 |
Detail Information |
|||
Extractors: | 1100L,750bar,3sets | Separators: | 500L,200bar,2sets |
---|---|---|---|
Pressure: | ~750bar | Temperature: | ~85℃ |
Flow: | 8000L/h | Power: | 800kw |
Capacity: | 3000-6000kg/24h | Area: | 540m2 |
Height: | 14m | Material: | The Part In Contact With CO2 And Water Is 304 Stainless Steel |
High Light: | 1000L×3 Supercritical CO2 Extraction Machine,Astaxanthin Supercritical CO2 Extraction Machine,Astaxanthin industrial co2 extraction machine |
Product Description

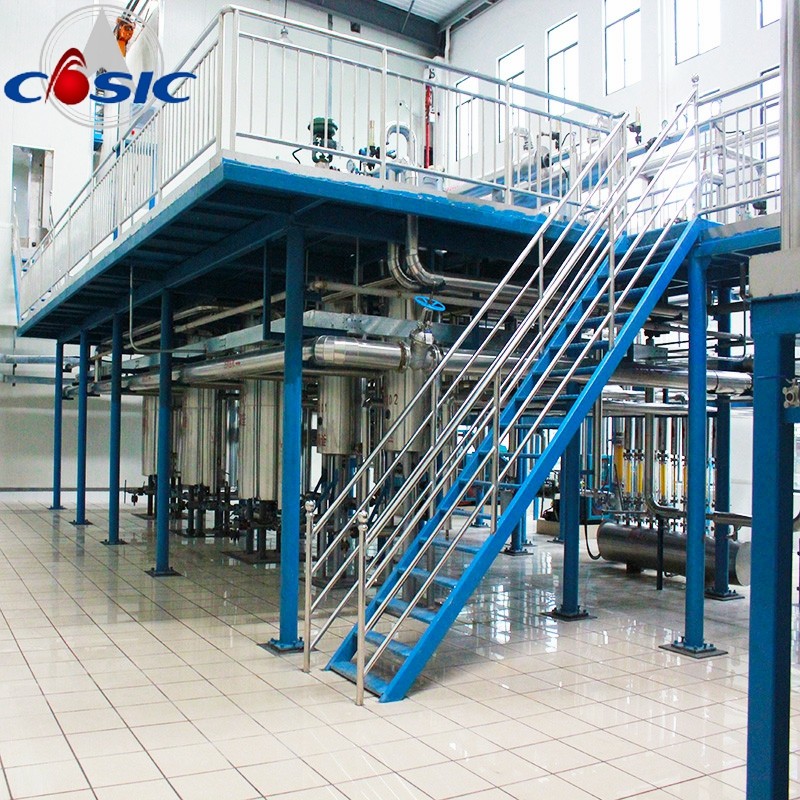

1000L×3 Astaxanthin Supercritical CO2 Extraction Machine
Introduction:
The SCFE machine can effectively extract Astaxanthin oil from Algae.
Green & environmentally friendly extraction process.
Excellent product quality.
GAWEE has provided more than 300 sets industrial-scale and dozens of pilot-size devices home and abroad.
The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.
The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.
1, No use of organic solvent, no pollution of extracts.
2, Operation at low temperature, no damage to natural active components.
3, No discharge of solid waste, waste gas or waste water.
4, High selectivity of extracts, high concentration of components.
5, Easy separation of CO2 from extracts.
Products Description:
1, The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.
2, The SCFE machine is a high-pressure systematic device which changes the CO2 between liquid, supercritical state
and gas for extraction and separation of materials and for process of system circulation.CO2 can be recycled and reused.
3, The extractor adopts pneumatic and electric quick opening structure, which is stable and clean.
4, The max-working extraction pressure of the equipment is 700bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 1000L.
5, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to preserve heat.
The outermost layer is wrapped with stainless steel skin to ensure the beauty of the equipment.
6, The machine is controlled remotely and automatically by PLC.
7, Provide Turnkey Service:GAWEE has rich design, manufacture experience, and can provide customized one-to-one service.
Products Type:
No. | Type | Specification | Pressure | Flow | Area | Height |
Capacity of raw material |
1 | 5L+1L | two extractors two separators | 500bar | 60L/H | 10 m2 | 2.5 m | testing purpose |
2 | 10L | three extractors two separators | 500bar | 100L/H | 10 m2 | 3 m | 10 to 20 kg |
3 | 25LX3 | three extractors two separators | 350bar ~ 750bar | 300L/H | 20 m2 | 4.5 m | 50 to 150 kg |
4 | 50LX3 | three extractors two separators | 350bar ~ 750bar | 600L/H | 80 m2 | 5.5 m | 0.1 to 0.3 ton |
5 | 100LX3 | three extractors two separators | 350bar ~ 750bar | 1000L/H | 130 m2 | 7 m | 0.2 to 0.6 ton |
6 | 200LX3 | three extractors two separators | 350bar ~ 750bar | 1500L/H | 200 m2 | 8.5 m | 0.5 to 1.2 ton |
7 | 300LX3 | three extractors two separators | 350bar ~ 750bar | 2500L/H | 300 m2 | 9 m | 0.7 to 2 ton |
8 | 400LX3 | three extractors two separators | 350bar ~ 750bar | 3500L/H | 400 m2 | 9.5 m | 1 to 2.5 ton |
9 | 500LX3 | three extractors two separators | 350bar ~ 750bar | 4000L/H | 450 m2 | 10 m | 1 to 3 ton |
10 | 600LX3 | three extractors two separators | 350bar ~ 750bar | 4000L/H | 500 m2 | 10 m | 1.5 to 3.5 ton |
11 | 800LX3 | three extractors two separators | 350bar ~ 550bar | 6000L/H | 540 m2 | 12 m | 2.5 to 4.5 ton |
12 | 1000LX3 | three extractors two separators | 350bar ~ 550bar | 8000L/H | 540 m2 | 14 m | 3 to 6 ton |
13 | 1500LX3 | three extractors two separators | 350bar ~ 550bar | 15000L/H | 600 m2 | 14 m | 3.5 to 8 ton |
14 | 2000LX3 | three extractors two separators | 350bar ~ 550bar | 15000L/H | 600 m2 | 16 m | 5 to 12 ton |
15 | 3500LX3 | three extractors two separators | 350bar ~ 550bar | 25000L/H | 700 m2 | 16 m | 8 to 18 ton |
16 | 5000LX3 | three extractors two separators | 350bar ~ 550bar | 25000L/H | 800 m2 | 16 m | 12 to 24 ton |
