100L×3 Egg Yolk Lecithin Industrial Extraction Systems

Minimum Order Quantity : 1sets Price : Negotiable
Packaging Details : Metal frame & skin package Delivery Time : 180 days for design and manufacture, 30 days for packaging and shipping, 60 days for installation and commissioning
Payment Terms : T/T Supply Ability : 20 sets per year
Place of Origin: Zunyi City China Brand Name: 100L×3 SCE Machine
Certification: ASME CE PED Model Number: SCE 100L-3-350

Detail Information

Extractors: 350bar,3sets Separators: 200bar,2sets
Pressure: ~350bar Temperature: ~85℃
Flow: 600L/h Power: 180kw
Capacity: 200-300kg/24h Area: 150m2
Height: 7m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

100L×3 industrial extraction systems

,

Egg Yolk Lecithin industrial extraction systems

,

100L×3 supercritical extraction machine

Product Description

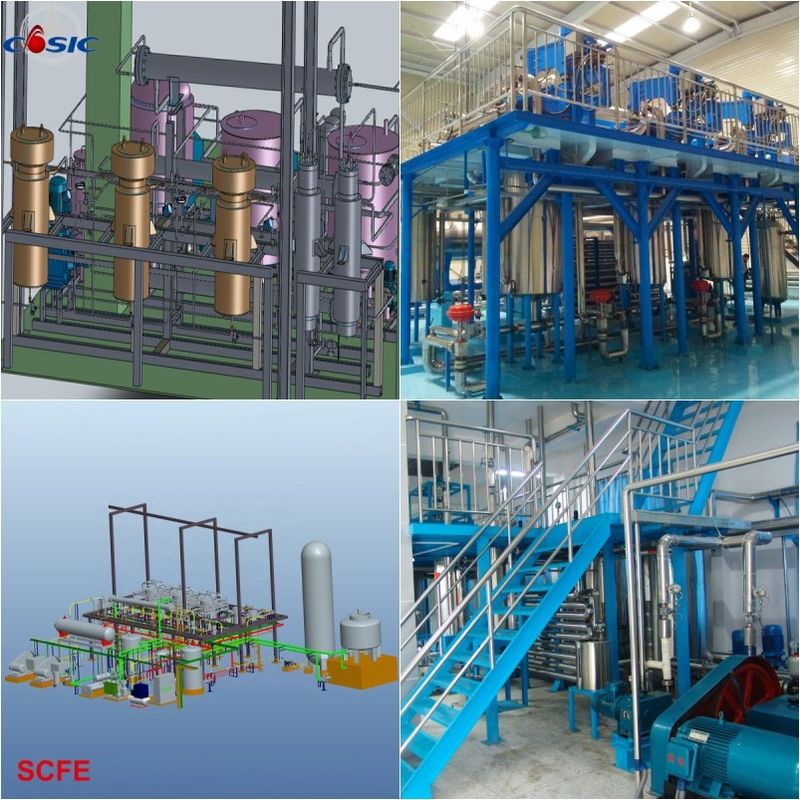

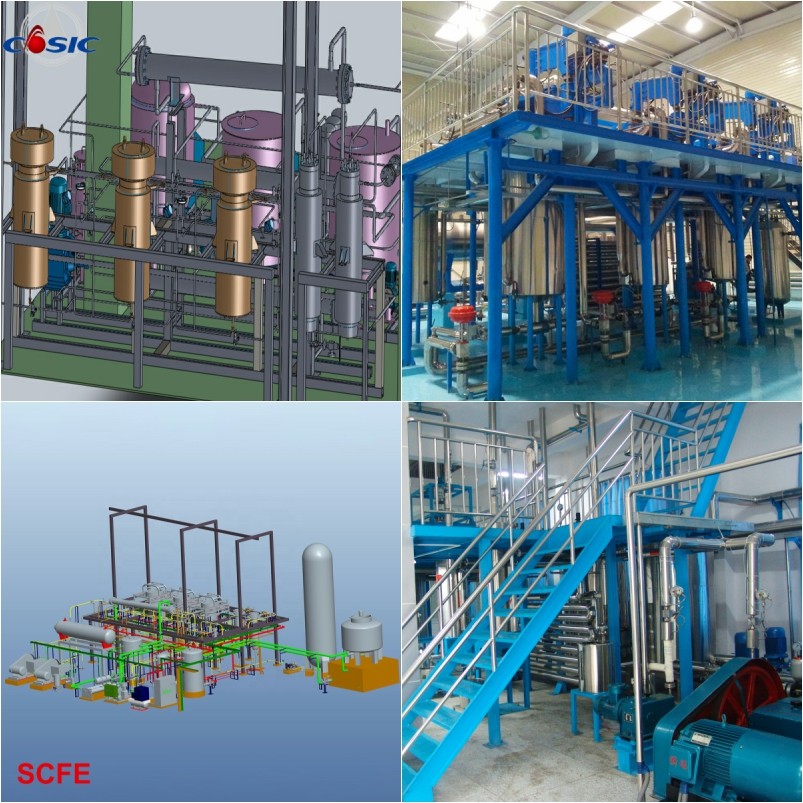

100L×3 Egg Yolk Lecithin Supercritical CO2 Extraction Machine



Introduction:

The SCFE machine can effectively extract oil from yolk.The the egg yolk lecithin is left and collected.

The extraction process is green and pollution-free, the extraction efficiency is high, and the product quality is the best.



The SCFE machine is a high-pressure systematic device which changes the CO2 between liquid, supercritical state and

gas for extraction and separation of materials and for process of system circulation.CO2 can be recycled and reused.



1, No use of organic solvent, no pollution of extracts.
2, No discharge of solid waste, waste gas or waste water.
3, High selectivity of extracts, high concentration of components.
4, Easy separation of CO2 from extracts.



Products Description:

1, The extractor adopts pneumatic and electric quick opening structure, which is stable and clean.
2, The max-working extraction pressure of the equipment is 320bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 100L.
3, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to preserve heat.
The outermost layer is wrapped with stainless steel skin to ensure the beauty of the equipment.

4, The machine is controlled remotely and automatically by PLC.



Products Type:

No. Type Specification Pressure Flow Area Height

Capacity of

raw material

1 5L+1L two extractors two separators 500bar 60L/H 10 m2 2.5 m testing purpose
2 10L three extractors two separators 500bar 100L/H 10 m2 3 m 10 to 20 kg
3 25LX3 three extractors two separators 350bar ~ 750bar 300L/H 20 m2 4.5 m 50 to 150 kg
4 50LX3 three extractors two separators 350bar ~ 750bar 600L/H 80 m2 5.5 m 0.1 to 0.3 ton
5 100LX3 three extractors two separators 350bar ~ 750bar 1000L/H 130 m2 7 m 0.2 to 0.6 ton
6 200LX3 three extractors two separators 350bar ~ 750bar 1500L/H 200 m2 8.5 m 0.5 to 1.2 ton
7 300LX3 three extractors two separators 350bar ~ 750bar 2500L/H 300 m2 9 m 0.7 to 2 ton
8 400LX3 three extractors two separators 350bar ~ 750bar 3500L/H 400 m2 9.5 m 1 to 2.5 ton
9 500LX3 three extractors two separators 350bar ~ 750bar 4000L/H 450 m2 10 m 1 to 3 ton
10 600LX3 three extractors two separators 350bar ~ 750bar 4000L/H 500 m2 10 m 1.5 to 3.5 ton
11 800LX3 three extractors two separators 350bar ~ 550bar 6000L/H 540 m2 12 m 2.5 to 4.5 ton
12 1000LX3 three extractors two separators 350bar ~ 550bar 8000L/H 540 m2 14 m 3 to 6 ton
13 1500LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 14 m 3.5 to 8 ton
14 2000LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 16 m 5 to 12 ton
15 3500LX3 three extractors two separators 350bar ~ 550bar 25000L/H 700 m2 16 m 8 to 18 ton
16 5000LX3 three extractors two separators 350bar ~ 550bar 25000L/H 800 m2 16 m 12 to 24 ton
