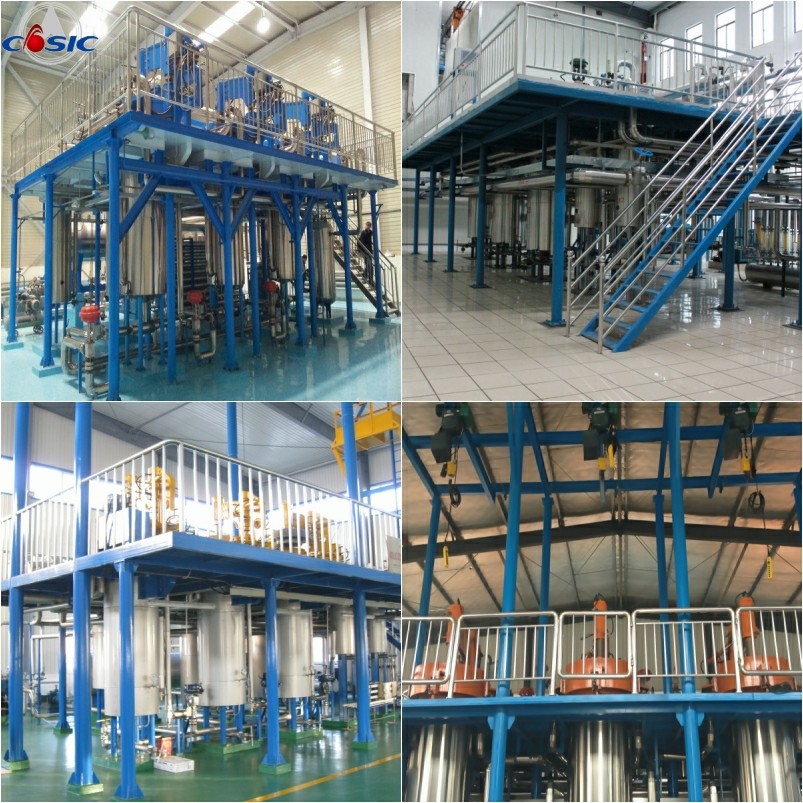

1800L 500m2 Industrial Supercritical CO2 Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Iron cabinet Delivery Time : 3months
Payment Terms : T/T Supply Ability : 20 sets per year
Place of Origin: Zunyi City China Brand Name: Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 600L-3-450

Detail Information

Extractors: 700L,450bar,3sets Separators: 300L,200bar,2sets
Pressure: ~400bar Temperature: ~85℃
Flow: 4000L/h Power: 350kw
Capacity: 1500-2000kg/24h Area: 500m2
Height: 10m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

1800L Supercritical CO2 Extraction Machine

,

500m2 Supercritical CO2 Extraction Machine

,

1800L co2 oil extraction machine

Product Description

600L×3 Egg Yolk Lecithin Supercritical CO2 Extraction Machine



Introduction:

The SCFE machine can efficiently extract the Yolk Lecithin from Egg Yolk,green and pollution-free,and the product quality

is the best.

GAWEE has provided more than 300 sets industrial-scale and dozens of pilot-size devices home and abroad.

The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.

The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.



Device Description:
1, The extractor cover of this plant uses hydraulic pressure quick opening structure.
2, The max-working extraction pressure of the equipment is 400bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 600L.
3, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
4, The extract, separate pressure and temperature can be automatic and remote controlled by PLC.

5, Lower Production Cost:The equipment could save customer 20% energy consumption.

6, Provide Turnkey Service:GAWEE has rich design, manufacture experience, and can provide customized one-to-one service.


SCFE Advantage:
1, No use of organic solvent, hence no pollution of extracts.
2, Operation at low temperature, hence no damage to natural active components.
3, No discharge of solid waste, waste gas or waste water.
4, High selectivity of extracts.

5, High concentration of components.
6, Easy separation of CO2 from extracts.



TYPE:

No. Type Specification Pressure Flow Area Height

Capacity of

raw material

1 5L+1L two extractors two separators 500bar 60L/H 10 m2 2.5 m testing purpose
2 10L three extractors two separators 500bar 100L/H 10 m2 3 m 10 to 20 kg
3 25LX3 three extractors two separators 350bar ~ 500bar 300L/H 20 m2 4.5 m 50 to 150 kg
4 50LX3 three extractors two separators 350bar ~ 500bar 600L/H 80 m2 5.5 m 0.1 to 0.3 ton
5 100LX3 three extractors two separators 350bar ~ 500bar 1000L/H 130 m2 7 m 0.2 to 0.6 ton
6 200LX3 three extractors two separators 350bar ~ 500bar 1500L/H 200 m2 8.5 m 0.5 to 1.2 ton
7 300LX3 three extractors two separators 350bar ~ 500bar 2500L/H 300 m2 9 m 0.7 to 2 ton
8 400LX3 three extractors two separators 350bar ~ 500bar 3500L/H 400 m2 9.5 m 1 to 2.5 ton
9 500LX3 three extractors two separators 350bar ~ 500bar 4000L/H 450 m2 10 m 1 to 3 ton
10 600LX3 three extractors two separators 350bar ~ 500bar 4000L/H 500 m2 10 m 1.5 to 3.5 ton
11 800LX3 three extractors two separators 350bar ~ 500bar 6000L/H 540 m2 12 m 2.5 to 4.5 ton
12 1000LX3 three extractors two separators 350bar ~ 500bar 8000L/H 540 m2 14 m 3 to 6 ton
13 1500LX3 three extractors two separators 350bar ~ 500bar 15000L/H 600 m2 14 m 3.5 to 8 ton
14 2000LX3 three extractors two separators 350bar ~ 500bar 15000L/H 600 m2 16 m 5 to 12 ton
15 3500LX3 three extractors two separators 350bar ~ 500bar 25000L/H 700 m2 16 m
