Tea Seed Oil Supercritical CO2 Extraction Machine 600L/H 180kw
Contact Person : Francis Li
Phone Number : +86 15085632682
WhatsApp : +8615085632682
|Minimum Order Quantity :||1set||Price :||Negotiable|
|Packaging Details :||Metal frame & skin package||Delivery Time :||90days|
|Payment Terms :||T/T||Supply Ability :||20 sets per year|
|Place of Origin:||China||Brand Name:||Supercritical CO2 Extraction Machine|
|Certification:||ASME CE PED||Model Number:||SCE 200L-3-350|
|Height:||8.5m||Material:||The Part In Contact With CO2 And Water Is 304 Stainless Steel|

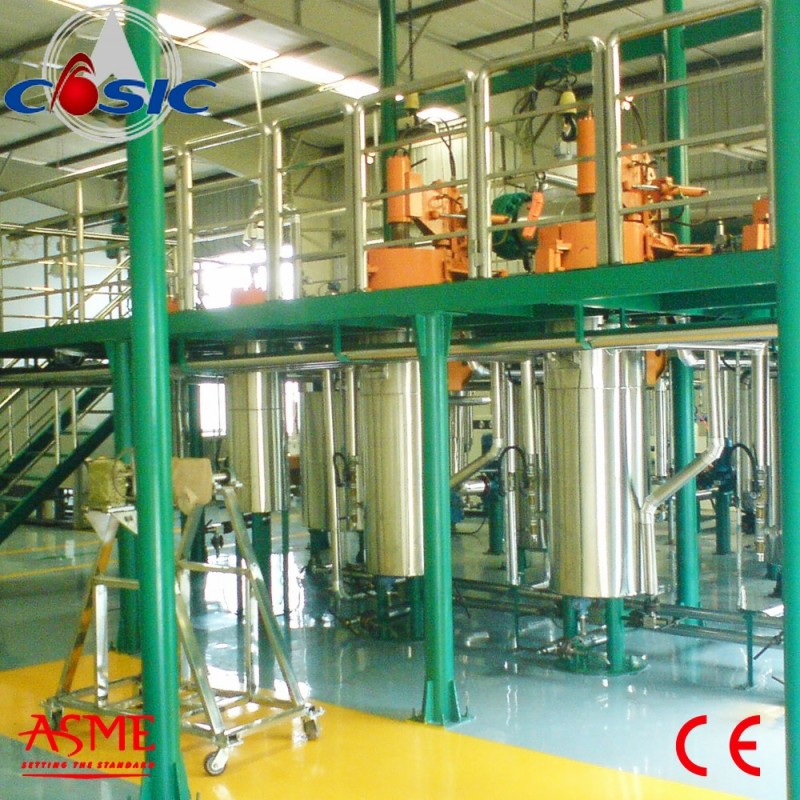

The SCFE machine can effectively extract Ganoderma spore oil from Ganoderma spore.
Green & environmentally friendly extraction process.
Excellent oil quality.
1,No use of organic solvent, no pollution of extracts.
2,Operation at low temperature, no damage to natural active components.
3,No discharge of solid waste, waste gas or waste water.
4,High selectivity of extracts, high concentration of components.
5,Easy separation of CO2 from extracts.
1,The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
2,The SCFE machine is a high-pressure systematic device which changes the CO2 between liquid, supercritical state and
gas for extraction and separation of materials and for process of system circulation.CO2 can be recycled and reused.
3,The extractor adopts pneumatic and electric quick opening structure, which is stable and clean.
4,The max-working extraction pressure of the equipment is 320bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 200L.
5,The rubber and plastic foam material are used on all pressure vessels and pressure pipes to preserve heat.
The outermost layer is wrapped with stainless steel skin to ensure the beauty of the equipment.
6,The machine is controlled remotely and automatically by PLC.
