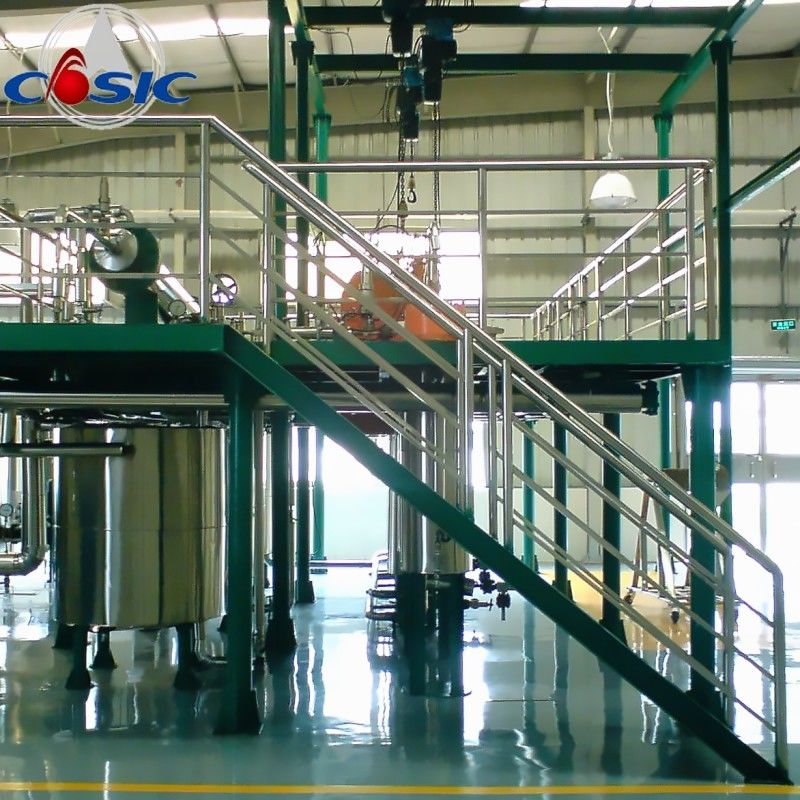

200L×3 Walnut Oil Supercritical CO2 Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame & skin package Delivery Time : 90 days
Payment Terms : T/T Supply Ability : 20 sets per year
Place of Origin: Zunyi City China Brand Name: Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 200L-3-350

Detail Information

Extractors: 280L,350bar,3sets Separators: 100L,200bar,2sets
Pressure: ~350bar Temperature: ~85℃
Flow: 1500L/h Power: 200kw
Capacity: 1000kg/24h Area: 200m2
Height: 8.5m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel

Product Description

The SCFE machine can effectively extract oil from yolk.The the egg yolk lecithin is left and collected.

The extraction process is green and pollution-free, the extraction efficiency is high, and the product quality is the best.



Device Description:
1,The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.
2,The max-working extraction pressure of the equipment is 320bar, max-working extaction temperature is 70℃,and
the effective volume of the material barrel is 200L.
3,The extract, separate pressure and temperature can be automatic and remote controlled by PLC.

SCFE Advantage:
1,No use of organic solvent, hence no pollution of extracts.
2,Operation at low temperature, hence no damage to natural active components.
3,No discharge of solid waste, waste gas or waste water.
