3000L Industrial Supercritical CO2 Extraction machine

Product Details:
Place of Origin: Zunyi City China
Brand Name: Supercritical CO2 Extraction Machine
Certification: ASME CE PED
Model Number: SCE 1000L-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Metal frame & skin
Delivery Time: 3months
Payment Terms: T/T
Supply Ability: 20 sets per year

Detail Information

Extractors: 1100L,3sets Separators: 500L,200bar,2sets
Pressure: ~750bar Temperature: ~85℃
Flow: 8000L/h Power: 500-900kw
Capacity: 3000-6000kg/24h Area: 540m2
Height: 14m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

3000L Supercritical CO2 Extraction Machine


540m2 Supercritical CO2 Extraction Machine


14m Supercritical CO2 Extraction Machine

Product Description

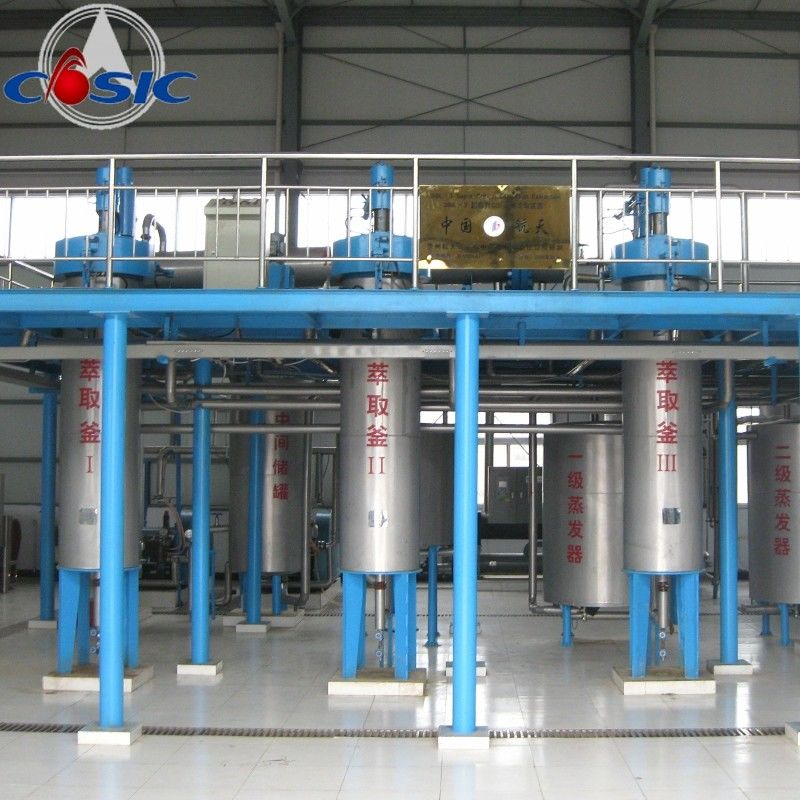

1000L×3 Industrial Supercritical CO2 Extraction Machine


Device Description:
1, The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.
2, The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.
3, The extractor cover of this plant uses hydraulic pressure quick opening structure.
4, The max-working extraction pressure of the equipment is ≤700bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 1000L.
5, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
6, The extract, separate pressure and temperature can be automatic and remote controlled by PLC.
7. Provide Turnkey Service:GAWEE has rich design, manufacture experience, and can provide customized one-to-one service.

8. Superior Cost-performance Ratio:The price is only 30% to 50% compared with other international brands.

9. Lower Production Cost:The equipment could save customer 20% energy consumption.

10. GAWEE has provided more than 300 sets industrial-scale and dozens of pilot-size devices home and abroad.

SCFE Advantage:
1, No use of organic solvent, hence no pollution of extracts.
2, Operation at low temperature, hence no damage to natural active components.
3, No discharge of solid waste, waste gas or waste water.
4, High selectivity of extracts. High concentration of components.
5, Easy separation of CO2 from extracts.
