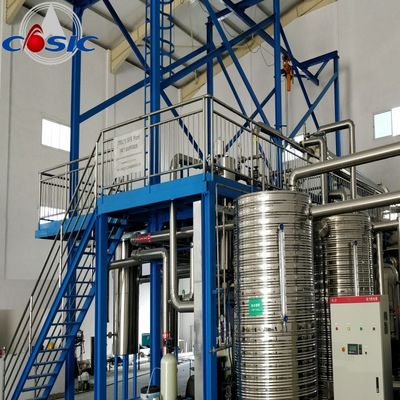

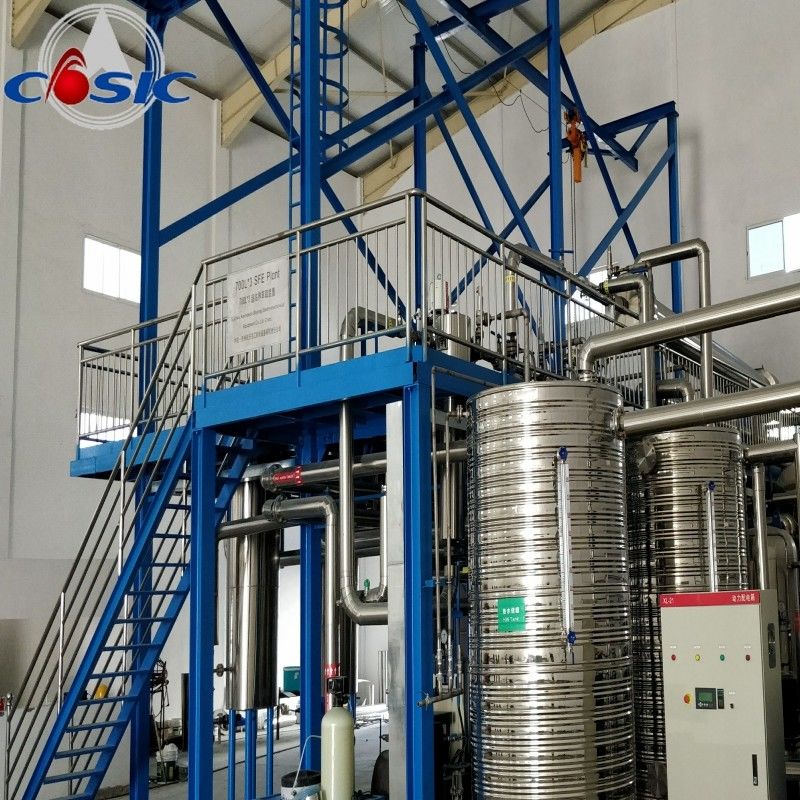

300L×3 Tea Seed Oil Supercritical CO2 Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame & skin Delivery Time : 90 days
Payment Terms : T/T Supply Ability : 20 sets per year
Place of Origin: Zunyi City China Brand Name: Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 300L-3-350

Detail Information

Extractors: 370L,350bar,3sets Separators: 150L,200bar,2sets
Pressure: ~350bar Temperature: ~85℃
Flow: 2000L/h Power: 300kw
Capacity: 750-1000kg/24h Area: 250m2
Height: 9m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel

Product Description

Introduction:

The SCFE machine can effectively extract Tea Seed Oil from Tea Seed.

Green & environmentally friendly extraction process.

Excellent oil quality.



Features:

1,No use of organic solvent, no pollution of extracts.
2,Operation at low temperature, no damage to natural active components.
3,No discharge of solid waste, waste gas or waste water.
4,High selectivity of extracts, high concentration of components.
5,Easy separation of CO2 from extracts.



Products Description:

1,The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.
2,The SCFE machine is a high-pressure systematic device which changes the CO2 between liquid, supercritical state and

gas for extraction and separation of materials and for process of system circulation.CO2 can be recycled and reused.
3,The extractor adopts pneumatic and electric quick opening structure, which is stable and clean.
4,The max-working extraction pressure of the equipment is 320bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 300L.
5,The rubber and plastic foam material are used on all pressure vessels and pressure pipes to preserve heat.
The outermost layer is wrapped with stainless steel skin to ensure the beauty of the equipment.

6,The machine is controlled remotely and automatically by PLC.





Type:

300L×3 Tea Seed Oil Supercritical CO2 Extraction Machine 0
