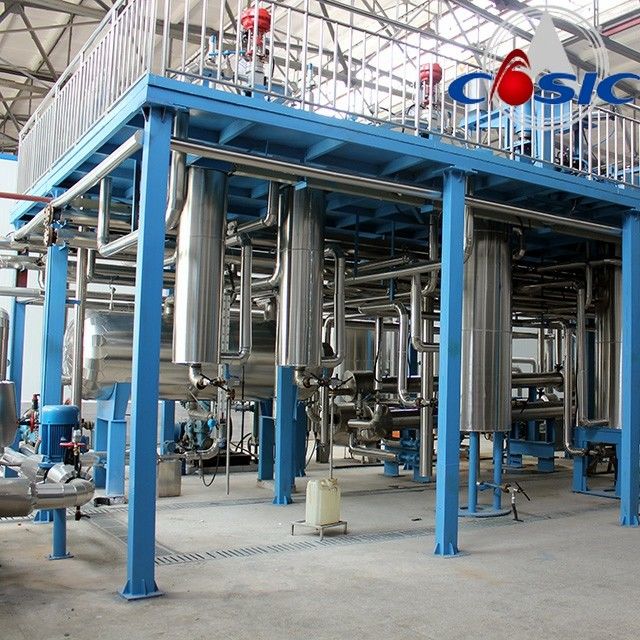

300m2 400L×3 Supercritical Fluid CO2 Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame & skin package Delivery Time : 90 days
Payment Terms : T/T Supply Ability : 20sets per year
Place of Origin: China Brand Name: Essential Oil Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 400L-3-250

Detail Information

Extractors: 480L,250bar,3sets Separators: 160bar,2sets
Pressure: ~250bar Temperature: ~85℃
Flow: 2500L/h Power: 400kw
Area: 300m2 Height: 9m
Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

400L×3 Supercritical Fluid CO2 Extraction Machine

,

300m2 Supercritical Fluid CO2 Extraction Machine

,

300m2 supercritical co2 drying mahcine

Product Description

400L×3 Supercritical CO2 Drying Machine



Introduction:

Supercritical CO2 drying equipment can produce aerogel products. The aerogel produced by this method has stable properties.
Aerogel products are currently the lightest materials and can be used as insulation materials:
1. The service life exceeds 20 years.
2. Excellent thermal insulation performance, thermal conductivity at room temperature can reach 0.012w/m·K.
3. Excellent temperature resistance, able to withstand temperatures of thousands of degrees.



Device Description:
1, The extractor cover of this plant uses hydraulic pressure quick opening structure.
2, The max-working extraction pressure of the equipment is 220bar, max-working extraction temperature is 70℃,and
the effective volume of the material basket is 400L.
3, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
4, The extract, separate pressure and temperature can be automatic and remote controlled by PLC.

5, Lower Production Cost:The equipment could save customer 20% energy consumption.

6, Turnkey Service:GAWEE has rich design, manufacture experience, and can provide customized one-to-one service.



Type:

No. Type Specification Pressure Flow Area Height
1 5L+1L two extractors two separators 500bar 60L/H 10 m2 2.5 m
2 10L three extractors two separators 500bar 100L/H 10 m2 3 m
3 25LX3 three extractors two separators 250bar 300L/H 20 m2 4.5 m
4 50LX3 three extractors two separators 250bar 600L/H 80 m2 5.5 m
5 100LX3 three extractors two separators 250bar 1000L/H 130 m2 7 m
6 200LX3 three extractors two separators 250bar 1500L/H 200 m2 8.5 m
7 300LX3 three extractors two separators 250bar 2500L/H 300 m2 9 m
8 400LX3 three extractors two separators 250bar 3500L/H 400 m2 9.5 m
9 500LX3 three extractors two separators 250bar 4000L/H 450 m2 10 m
10 600LX3 three extractors two separators 250bar 4000L/H 500 m2 10 m
11 800LX3 three extractors two separators 250bar 6000L/H 540 m2 12 m
12 1000LX3 three extractors two separators 250bar 8000L/H 540 m2 14 m
13 1500LX3 three extractors two separators 250bar 15000L/H 600 m2 14 m
14 2000LX3 three extractors two separators 250bar 15000L/H 600 m2 16 m
15 3500LX3 three extractors two separators 250bar 25000L/H 700 m2 16 m
16 5000LX3 three extractors two separators 250bar 25000L/H 800 m2 16 m
