500bar 1500L×3 Industrial Supercritical CO2 Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame and tin packaging Delivery Time : 90 days
Payment Terms : T/T Supply Ability : 20sets per year
Place of Origin: Zunyi City China Brand Name: Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 1500-3

Detail Information

Extractors: 1500L,350bar,3sets Separators: 1000L,200bar,2sets
Pressure: 350-550bar Temperature: ~85℃
Flow: 15000L/h Power: 900kw
Area: 600m2 Height: 14m
Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

1500L×3 Supercritical CO2 Extraction Machine

,

500bar Supercritical CO2 Extraction Machine

,

1500L×3 co2 plant extraction machine

Product Description

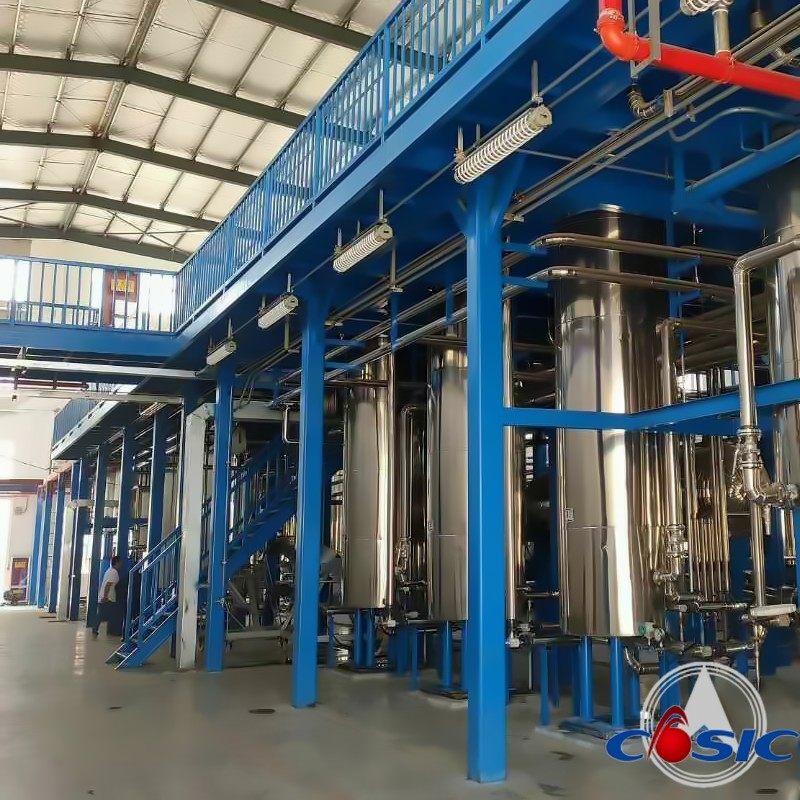

1500L×3 Industrial Supercritical CO2 Extraction Machine



Introduction:

The supercritical CO2 cleaning machine can clean fat-soluble dirt on the product.
1. Short cleaning time and high efficiency.
2. Cleaner and thoroughly clean.
3. Protect the product from being damaged.

4. Water-free, solvent-free cleaning.
5. Suitable for High-end products.



Device Description:
1, The extractor cover of this plant uses hydraulic pressure quick opening structure.
2, The max-working extraction pressure of the equipment is 320bar, max-working extraction temperature is 70℃,and
the effective volume of the material basket is 1500L.
3, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
4, The extract, separate pressure and temperature can be automatic and remote controlled by PLC.

5, Lower Production Cost:The equipment could save customer 20% energy consumption.

6, Turnkey Service:GAWEE has rich design, manufacture experience, and can provide customized one-to-one service.



Type:



No. Type Specification Pressure Flow Area Height
1 5L+1L two extractors two separators 500bar 60L/H 10 m2 2.5 m
2 10L three extractors two separators 500bar 100L/H 10 m2 3 m
3 25LX3 three extractors two separators 350bar ~ 750bar 300L/H 20 m2 4.5 m
4 50LX3 three extractors two separators 350bar ~ 750bar 600L/H 80 m2 5.5 m
5 100LX3 three extractors two separators 350bar ~ 750bar 1000L/H 130 m2 7 m
6 200LX3 three extractors two separators 350bar ~ 750bar 1500L/H 200 m2 8.5 m
7 300LX3 three extractors two separators 350bar ~ 750bar 2500L/H 300 m2 9 m
8 400LX3 three extractors two separators 350bar ~ 750bar 3500L/H 400 m2 9.5 m
9 500LX3 three extractors two separators 350bar ~ 750bar 4000L/H 450 m2 10 m
10 600LX3 three extractors two separators 350bar ~ 750bar 4000L/H 500 m2 10 m
11 800LX3 three extractors two separators 350bar ~ 550bar 6000L/H 540 m2 12 m
12 1000LX3 three extractors two separators 350bar ~ 550bar 8000L/H 540 m2 14 m
13 1500LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 14 m
14 2000LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 16 m
15 3500LX3 three extractors two separators 350bar ~ 550bar 25000L/H 700 m2 16 m
16 5000LX3 three extractors two separators 350bar ~ 550bar 25000L/H 800 m2 16 m
