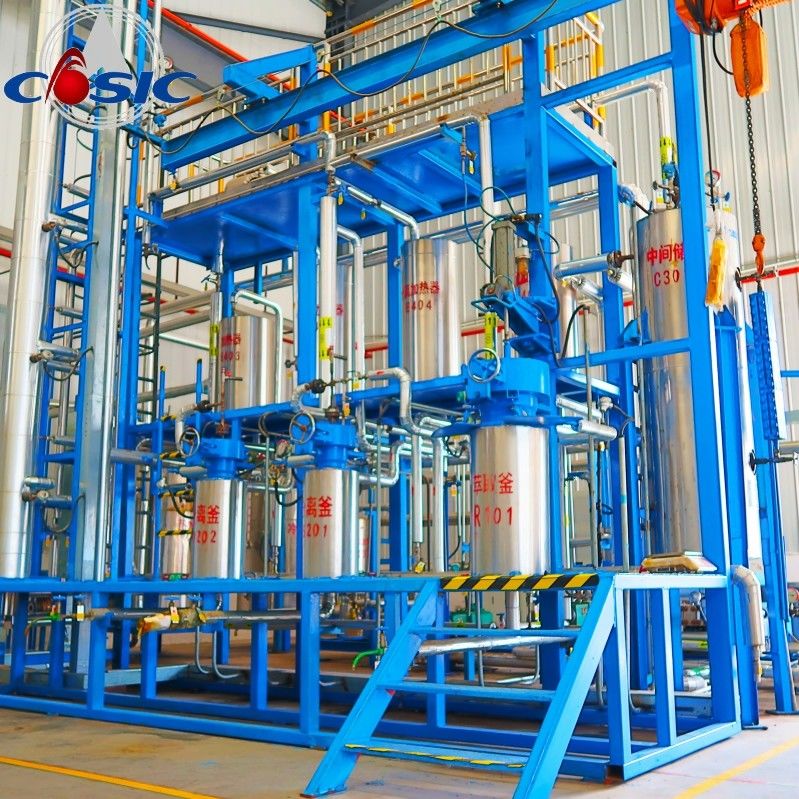

50kw 10L Industrial Supercritical CO2 Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Negotiable Delivery Time : 90 days
Payment Terms : T/T Supply Ability : 50sets per year
Place of Origin: Zunyi city China Brand Name: Supercritical CO2 Extraction Experiment Machine
Certification: ASME CE PED Model Number: SCE 10L-750

Detail Information

Pressure: ~750bar Temperature: ~85℃
Power: 50kw Size: 6m×5m×4m
Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

10L Supercritical CO2 Extraction Machine

,

50kw Supercritical CO2 Extraction Machine

,

10L industrial co2 extraction machine

Product Description

10L Supercritical CO2 Extraction Experiment Machine



1, The CO2 SFE plant is a high-pressure systematic device which changes the CO2 between its gas, liquid and supercritical state for extraction and separation of materials and for process of system circulation.

2, No use of organic solvent, hence no pollution of extracts.
3, Operation at low temperature, hence no damage to natural active components.
4, High selectivity of extracts. High concentration of components.
5, Easy separation of CO2 from extracts.
6, No discharge of solid waste, waste gas or waste water.

7, It is widely used in Pharmaceutical, cosmetics, food, health products, new materials and other fields.

8, The maximum working pressure of the equipment is 700bar, maximum working temperature is 70℃and the effective volume of the material basket is 10L.

9, PLC control system, automatic temperature and pressure control.

No. Type Specification Pressure Flow Area Height

Capacity of

raw material

1 5L+1L two extractors two separators 500bar 60L/H 10 m2 2.5 m testing purpose
2 10L three extractors two separators 500bar 100L/H 10 m2 3 m 10 to 20 kg
3 25LX3 three extractors two separators 350bar ~ 750bar 300L/H 20 m2 4.5 m 50 to 150 kg
4 50LX3 three extractors two separators 350bar ~ 750bar 600L/H 80 m2 5.5 m 0.1 to 0.3 ton
5 100LX3 three extractors two separators 350bar ~ 750bar 1000L/H 130 m2 7 m 0.2 to 0.6 ton
6 200LX3 three extractors two separators 350bar ~ 750bar 1500L/H 200 m2 8.5 m 0.5 to 1.2 ton
7 300LX3 three extractors two separators 350bar ~ 750bar 2500L/H 300 m2 9 m 0.7 to 2 ton
8 400LX3 three extractors two separators 350bar ~ 750bar 3500L/H 400 m2 9.5 m 1 to 2.5 ton
9 500LX3 three extractors two separators 350bar ~ 750bar 4000L/H 450 m2 10 m 1 to 3 ton
10 600LX3 three extractors two separators 350bar ~ 750bar 4000L/H 500 m2 10 m 1.5 to 3.5 ton
11 800LX3 three extractors two separators 350bar ~ 550bar 6000L/H 540 m2 12 m 2.5 to 4.5 ton
12 1000LX3 three extractors two separators 350bar ~ 550bar 8000L/H 540 m2 14 m 3 to 6 ton
13 1500LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 14 m 3.5 to 8 ton
14 2000LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 16 m 5 to 12 ton
15 3500LX3 three extractors two separators 350bar ~ 550bar 25000L/H 700 m2 16 m 8 to 18 ton
16 5000LX3 three extractors two separators 350bar ~ 550bar 25000L/H 800 m2 16 m 12 to 24 ton
