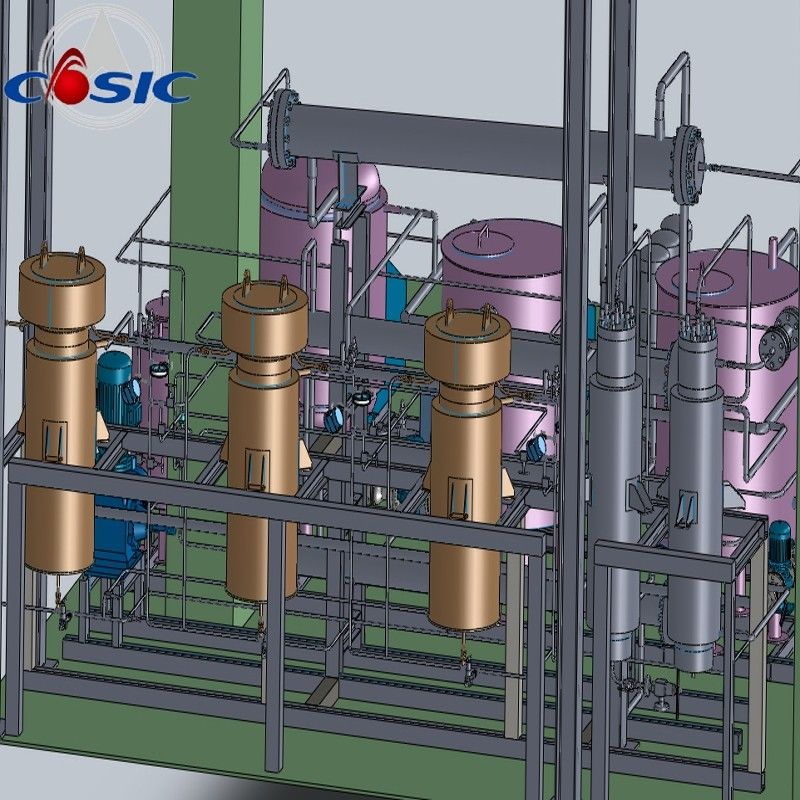

50L×3 Egg Yolk Lecithin Supercritical CO2 Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame & skin package Delivery Time : 90days
Payment Terms : T/T Supply Ability : 50 sets per year
Place of Origin: China Brand Name: Industrial Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 50-3-550

Detail Information

Extractors: 550bar,3sets Separators: 200bar,2sets
Pressure: ~550bar Temperature: ~85℃
Flow: 600L/h Power: 120kw
Capacity: 150kg/24h Area: 120m2
Height: 5.5m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel 1sets

Product Description

The SCFE machine can effectively extract oil from yolk.The the egg yolk lecithin is left and collected.

The extraction process is green and pollution-free, the extraction efficiency is high, and the product quality is the best.



Device Description:
1,The extractor cover of this plant uses hydraulic pressure quick opening structure.
2,The max-working extraction pressure of the equipment is 500bar, max-working extraction temperature is 70℃,and
the effective volume of the material basket is 50L.
3,The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
4,The extract, separate pressure and temperature can be automatic and remote controlled by PLC.

SCFE Advantage:
1,No use of organic solvent, hence no pollution of extracts.
2,Operation at low temperature, hence no damage to natural active components.
3,No discharge of solid waste, waste gas or waste water.
4,High selectivity of extracts. High concentration of components.
5,Easy separation of CO2 from extracts.



Type:

No. Type Specification Pressure Flow Area Height

Capacity of

raw material

1 5L+1L two extractors two separators 500bar 60L/H 10 m2 2.5 m testing purpose
2 10L three extractors two separators 500bar 100L/H 10 m2 3 m 10 to 20 kg
3 25LX3 three extractors two separators 350bar ~ 750bar 300L/H 20 m2 4.5 m 50 to 150 kg
4 50LX3 three extractors two separators 350bar ~ 750bar 600L/H 80 m2 5.5 m 0.1 to 0.3 ton
5 100LX3 three extractors two separators 350bar ~ 750bar 1000L/H 130 m2 7 m 0.2 to 0.6 ton
6 200LX3 three extractors two separators 350bar ~ 750bar 1500L/H 200 m2 8.5 m 0.5 to 1.2 ton
7 300LX3 three extractors two separators 350bar ~ 750bar 2500L/H 300 m2 9 m 0.7 to 2 ton
8 400LX3 three extractors two separators 350bar ~ 750bar 3500L/H 400 m2 9.5 m 1 to 2.5 ton
9 500LX3 three extractors two separators 350bar ~ 750bar 4000L/H 450 m2 10 m 1 to 3 ton
10 600LX3 three extractors two separators 350bar ~ 750bar 4000L/H 500 m2 10 m 1.5 to 3.5 ton
11 800LX3 three extractors two separators 350bar ~ 550bar 6000L/H 540 m2 12 m 2.5 to 4.5 ton
12 1000LX3 three extractors two separators 350bar ~ 550bar 8000L/H 540 m2 14 m 3 to 6 ton
13 1500LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 14 m 3.5 to 8 ton
14 2000LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 16 m 5 to 12 ton
15 3500LX3 three extractors two separators 350bar ~ 550bar 25000L/H 700 m2 16 m 8 to 18 ton
16 5000LX3 three extractors two separators 350bar ~ 550bar 25000L/H 800 m2 16 m 12 to 24 ton
