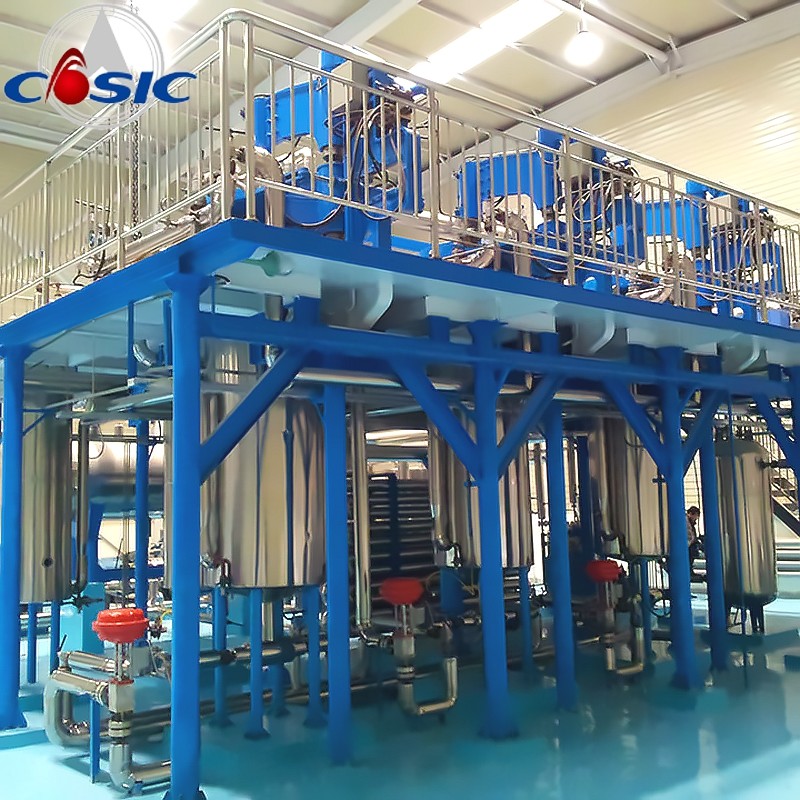

600L×3 Ganoderma Spore Oil Supercritical CO2 Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame & skin Delivery Time : 90 days
Payment Terms : T/T Supply Ability : 20 sets per year
Place of Origin: China Brand Name: Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 600L-3-350

Detail Information

Extractors: 700L,350bar,3sets Separators: 300L,200bar,2sets
Pressure: ~350bar Temperature: ~85℃
Flow: 4000L/h Power: 400kw
Capacity: 2000kg/24h Area: 500m2
Height: 10m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel

Product Description

The supercritical CO2 fluid extraction(SCFE) machine can effectively extract Ganoderma Spore Oil from Ganoderma

spore.And the quality of the oil is the best.



Device Description:

1,The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.
2,The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.
3,The extractor cover of this plant uses hydraulic pressure quick opening structure.
4,The max-working extraction pressure of the equipment is 320bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 600L.
5,The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
6,The extract, separate pressure and temperature can be automatic and remote controlled by PLC.

SCFE Advantage:
1,No use of organic solvent, hence no pollution of extracts.
2,Operation at low temperature, hence no damage to natural active components.
3,No discharge of solid waste, waste gas or waste water.

4,High selectivity of extracts. High concentration of components.
5,Easy separation of CO2 from extracts.



Type:

600L×3 Ganoderma Spore Oil  Supercritical CO2 Extraction Machine 0
