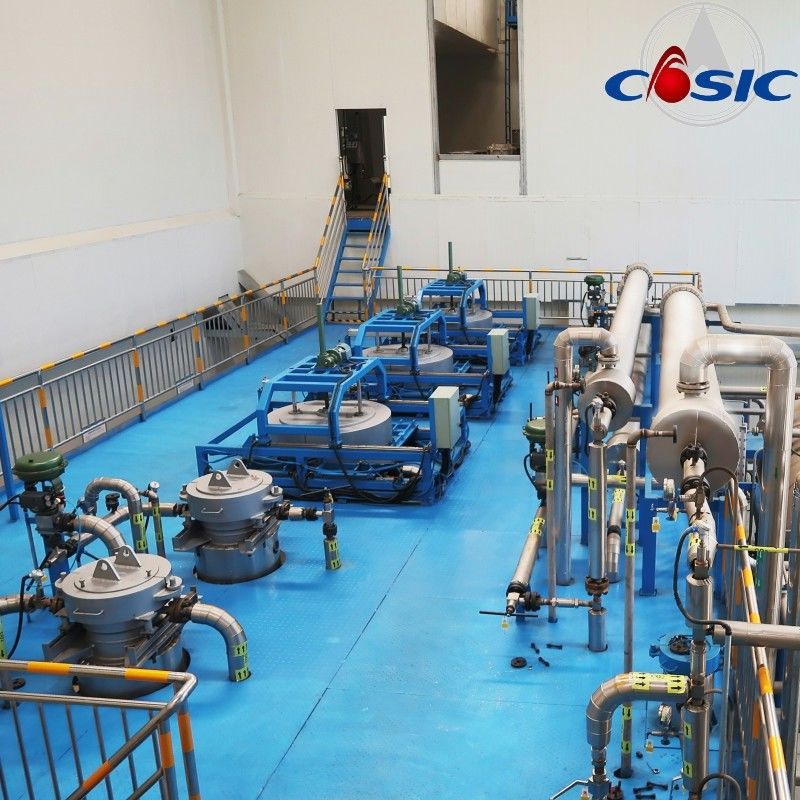

600L×3 Lycopene Supercritical CO2 Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame & skin package Delivery Time : 180 days for design and manufacture, 30 days for packaging and shipping, 60 days for installation and commissioning
Payment Terms : T/T Supply Ability : 20 sets per year
Place of Origin: Zunyi City China Brand Name: Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 600L-3-350

Detail Information

Extractors: 700L,400bar,3sets Separators: 300L,200bar,2sets
Pressure: ~400bar Temperature: ~85℃
Flow: 4000L/h Power: 350kw
Capacity: 1500-2000kg/24h Area: 500m2
Height: 10m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel

Product Description

Device Description:
The supercritical CO2 fluid extraction(SCFE) machine can effectively extract lycopene from tomato skin.
1,The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.
2,The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.
3,The extractor cover of this plant uses hydraulic pressure quick opening structure.
4,The max-working extraction pressure of the equipment is 360bar, max-working extaction temperature is 70℃,and
the effective volume of the material barrel is 600L.
5,The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
6,The extract, separate pressure and temperature can be automatic and remote controlled by PLC.



SCFE Advantage:

1,No use of organic solvent, hence no pollution of extracts.

2,High selectivity of extracts. High concentration of components.
3,Operation at low temperature, hence no damage to natural active components.
4,No discharge of solid waste, waste gas or waste water.
5,Easy separation of CO2 from extracts.



Type:

No. Type Specification Pressure Flow Area Height

Capacity of

raw material

1 5L+1L two extractors two separators 500bar 60L/H 10 m2 2.5 m testing purpose
2 10L three extractors two separators 500bar 100L/H 10 m2 3 m 10 to 20 kg
3 25LX3 three extractors two separators 350bar ~ 500bar 300L/H 20 m2 4.5 m 50 to 150 kg
4 50LX3 three extractors two separators 350bar ~ 500bar 600L/H 80 m2 5.5 m 0.1 to 0.3 ton
5 100LX3 three extractors two separators 350bar ~ 500bar 1000L/H 130 m2 7 m 0.2 to 0.6 ton
6 200LX3 three extractors two separators 350bar ~ 500bar 1500L/H 200 m2 8.5 m 0.5 to 1.2 ton
7 300LX3 three extractors two separators 350bar ~ 500bar 2500L/H 300 m2 9 m 0.7 to 2 ton
8 400LX3 three extractors two separators 350bar ~ 500bar 3500L/H 400 m2 9.5 m 1 to 2.5 ton
9 500LX3 three extractors two separators 350bar ~ 500bar 4000L/H 450 m2 10 m 1 to 3 ton
10 600LX3 three extractors two separators 350bar ~ 500bar 4000L/H 500 m2 10 m 1.5 to 3.5 ton
11 800LX3 three extractors two separators 350bar ~ 500bar 6000L/H 540 m2 12 m 2.5 to 4.5 ton
12 1000LX3 three extractors two separators 350bar ~ 500bar 8000L/H 540 m2 14 m 3 to 6 ton
13 1500LX3 three extractors two separators 350bar ~ 500bar 15000L/H 600 m2 14 m 3.5 to 8 ton
14 2000LX3 three extractors two separators 350bar ~ 500bar 15000L/H 600 m2 16 m 5 to 12 ton
15 3500LX3 three extractors two separators 350bar ~ 500bar 25000L/H 700 m2 16 m
