Aerogel Supercritical CO2 Drying Machine 280L 200kw 1500L/H
Contact Person : Francis Li
Phone Number : +86 15085632682
WhatsApp : +8615085632682
|Minimum Order Quantity :||1set||Price :||Negotiable|
|Packaging Details :||Metal frame & skin package||Delivery Time :||90 days|
|Payment Terms :||T/T||Supply Ability :||20 sets per year|
|Place of Origin:||Zunyi City China||Brand Name:||Supercritical CO2 Extraction Machine|
|Certification:||ASME CE PED||Model Number:||SCE 600L-3-750|
|Height:||10m||Material:||The Part In Contact With CO2 And Water Is 304 Stainless Steel|

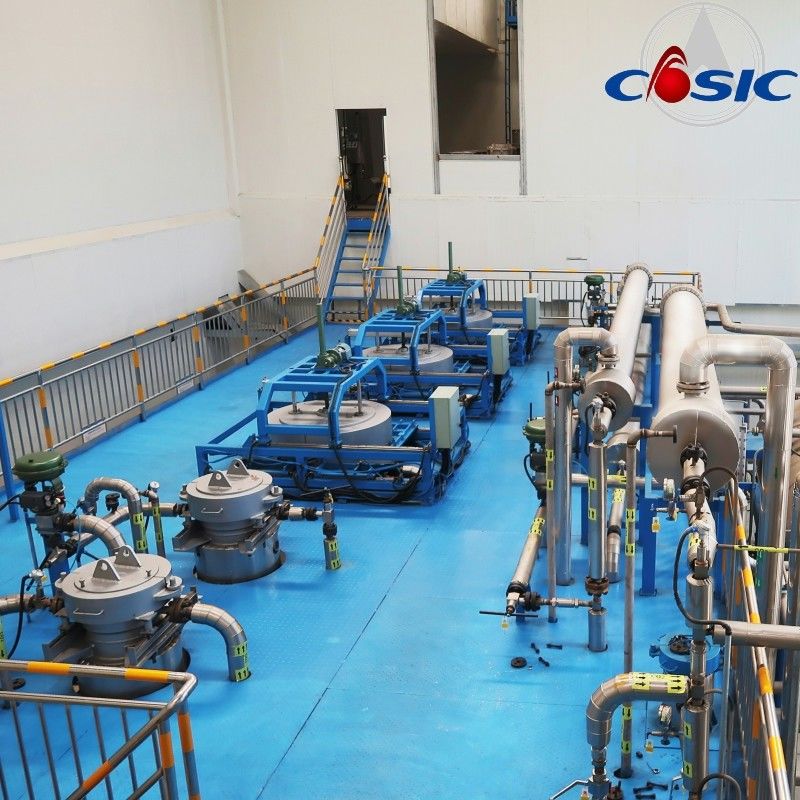

The supercritical CO2 fluid extraction(SCFE) machine can effectively extract Pure Natural Astaxanthin from Algae.
1,The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
2,The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.
3,The extractor cover of this plant uses hydraulic pressure quick opening structure.
4,The max-working extraction pressure of the equipment is 700bar, max-working extaction temperature is 70℃,and
the effective volume of the material barrel is 600L.
5,The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
6,The extract, separate pressure and temperature can be automatic and remote controlled by PLC.
1,No use of organic solvent, hence no pollution of extracts.
2,High selectivity of extracts. High concentration of components.
3,Operation at low temperature, hence no damage to natural active components.
4,No discharge of solid waste, waste gas or waste water.
5,Easy separation of CO2 from extracts.
