600L×3 Zanthoxylum Oil Co2 Extraction Device

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame and tin packaging Delivery Time : 180 days for design and manufacture, 30 days for packaging and shipping, 60 days for installation and commissioning
Payment Terms : T/T, L/C Supply Ability : 20 sets per year
Place of Origin: Zunyi City,China Brand Name: SCE Machine
Certification: ASME、CE、PED、GB Model Number: SCE 600L×3-350

Detail Information

Basic Component: 3 Extractors, 2 Separators Working Pressure: ~320bar
Working Temperature: ~70℃ Flow: 4000L/h
Power: 450KW Area: 480m2
Height: 9.5m
High Light:

600L×3 co2 extraction device

,

Zanthoxylum Oil co2 extraction device

,

600L×3 industrial extraction systems

Product Description

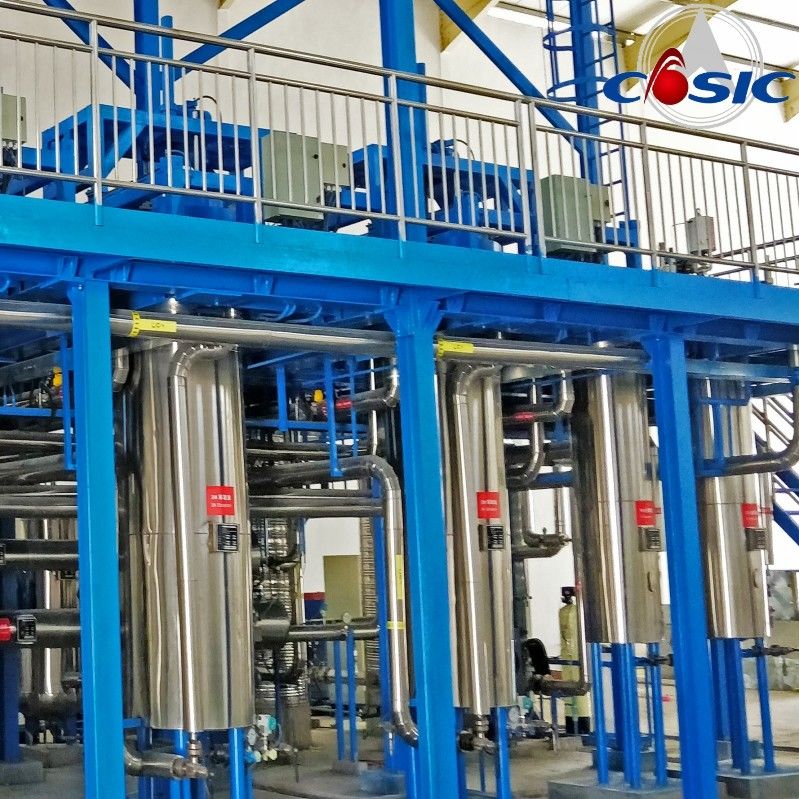

600L×3 Zanthoxylum Oil Supercritical CO2 Extraction Machine



The plant of 600L×3 is three extractor two separator SCE machine, the working medium is CO2, which can be reused. The extract, separate pressure and temperature can be automatic and remote controlled by computer. The extractors can work with the way of series, parallel and single. The series valves on the import and export of each extractor can be manual controlled, the highest working pressure control method of each extractor during working is by the use of pressure transmitter, safety valve and control signals. It is safety and reliable. The extractor cover of this plant uses hydraulic pressure quick opening structure. The metal contact with material of this plant, such as container inner surface, pipe, valve and so on. All of them are manufactured with stainless steel which has the characters of anti-sour and anti-alkali and satisfy food hygiene demand.

The max design pressure of this plant is 350bar, the highest working pressure is 320bar, We will strict carry out the related  standard and rule demand during design, manufacture, test, installation and commissioning.

The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature, outside is thin stainless steel, which will make our device beauty.

Turnkey project, after commissioning, test run with materials, promise that the machine can get the product.



Raw Material Zanthoxylum
Extraction Pressure 250-280bar
Extraction Temperature 50-55℃
Separation pressure 70-90bar
Separation temperature 40-50℃
Processing Capacity ≥2000kg/24h
