600L/H 50L×3 Co2 Supercritical Extraction Machine

Minimum Order Quantity : 1sets Price : Negotiable
Packaging Details : Metal frame & skin package Delivery Time : 180 days for design and manufacture, 30 days for packaging and shipping, 60 days for installation and commissioning
Payment Terms : T/T Supply Ability : 20 sets per year
Place of Origin: Zunyi City China Brand Name: 50L×3 SCE Machine
Certification: ASME CE PED Model Number: SCE 50L-3-350

Detail Information

Pressure: ~350bar Temperature: ~85℃
Flow: 600L/h Power: 120kw
Capacity: 150-200kg/24h Area: 120m2
Height: 6m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

50L×3 Co2 Supercritical Extraction Machine

,

600L/h Co2 Supercritical Extraction Machine

,

50L×3 co2 extraction device

Product Description

50L×3 Supercritical CO2 Extraction Machine

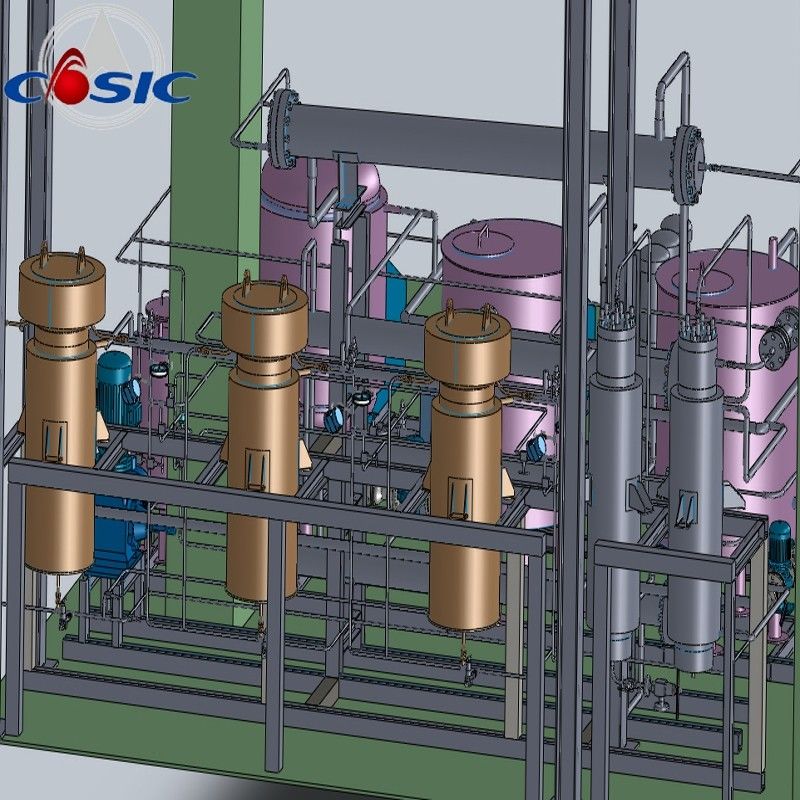

This equipment contains 3 extractors, 2 separators, 1 CO2 storage tank, without CO2 recovery system.

1, The SCE Machine is a high-pressure systematic device which changes the CO2 between its gas, liquid and supercritical state for extraction and separation of materials and for process of system circulation.

2, No use of organic solvent, hence no pollution of extracts.
3, Operation at low temperature, hence no damage to natural active components.
4, High selectivity of extracts. High concentration of components.
5, Easy separation of CO2 from extracts.
6, No discharge of solid waste, waste gas or waste water.

7It is controled by PLC.



No. Type Specification Pressure Flow Area Height

Capacity of

raw material

1 5L+1L two extractors two separators 500bar 60L/H 10 m2 2.5 m testing purpose
2 10L three extractors two separators 500bar 100L/H 10 m2 3 m 10 to 20 kg
3 25LX3 three extractors two separators 350bar ~ 750bar 300L/H 20 m2 4.5 m 50 to 150 kg
4 50LX3 three extractors two separators 350bar ~ 750bar 600L/H 80 m2 5.5 m 0.1 to 0.3 ton
5 100LX3 three extractors two separators 350bar ~ 750bar 1000L/H 130 m2 7 m 0.2 to 0.6 ton
6 200LX3 three extractors two separators 350bar ~ 750bar 1500L/H 200 m2 8.5 m 0.5 to 1.2 ton
7 300LX3 three extractors two separators 350bar ~ 750bar 2500L/H 300 m2 9 m 0.7 to 2 ton
8 400LX3 three extractors two separators 350bar ~ 750bar 3500L/H 400 m2 9.5 m 1 to 2.5 ton
9 500LX3 three extractors two separators 350bar ~ 750bar 4000L/H 450 m2 10 m 1 to 3 ton
10 600LX3 three extractors two separators 350bar ~ 750bar 4000L/H 500 m2 10 m 1.5 to 3.5 ton
11 800LX3 three extractors two separators 350bar ~ 550bar 6000L/H 540 m2 12 m 2.5 to 4.5 ton
12 1000LX3 three extractors two separators 350bar ~ 550bar 8000L/H 540 m2 14 m 3 to 6 ton
13 1500LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 14 m 3.5 to 8 ton
14 2000LX3 three extractors two separators 350bar ~ 550bar 15000L/H 600 m2 16 m 5 to 12 ton
15 3500LX3 three extractors two separators 350bar ~ 550bar 25000L/H 700 m2 16 m 8 to 18 ton
16 5000LX3 three extractors two separators 350bar ~ 550bar 25000L/H 800 m2 16 m 12 to 24 ton
