Aerogel Supercritical CO2 Drying Machine 280L 200kw 1500L/H
Contact Person : Francis Li
Phone Number : +86 15085632682
WhatsApp : +8615085632682
Minimum Order Quantity : | 1set | Price : | Negotiable |
---|---|---|---|
Packaging Details : | Metal frame & skin | Delivery Time : | 3months |
Payment Terms : | T/T | Supply Ability : | 20 sets per year |
Place of Origin: | Zunyi City China | Brand Name: | Supercritical CO2 Extraction Machine |
---|---|---|---|
Certification: | ASME CE PED | Model Number: | SCE 1000L-3-350 |
Detail Information |
|||
Extractors: | 1100L,350bar,3sets | Separators: | 500L,200bar,2sets |
---|---|---|---|
Pressure: | ~400bar | Temperature: | ~85℃ |
Flow: | 8000L/h | Power: | 500kw |
Area: | 540m2 | Height: | 10m |
Material: | The Part In Contact With CO2 And Water Is 304 Stainless Steel | ||
High Light: | supercritical co2 cleaning machine,1000L×3 co2 cleaning machine,1000L×3 carbon dioxide cleaning machine |
Product Description

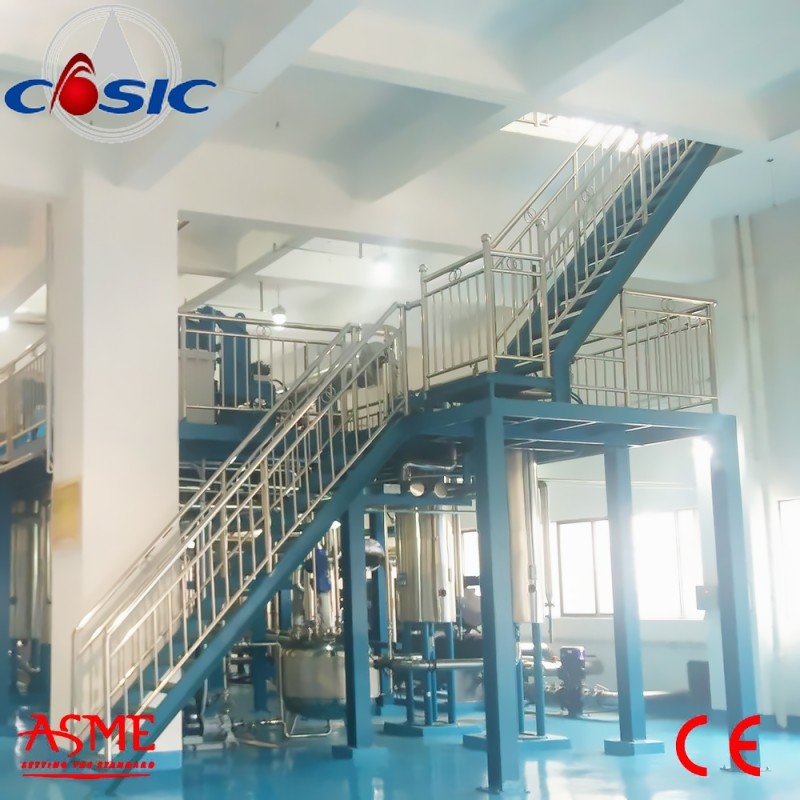

1000L×3 Supercritical CO2 Cleaning Machine
Introduction:
The supercritical CO2 cleaning machine can clean fat-soluble dirt on the product.
1. Short cleaning time and high efficiency.
2. Cleaner and thoroughly clean.
3. Protect the product from being damaged.
4. Anhydrous and solvent-free.
5. Suitable for high-end products.
Device Description:
1, The extractor cover of this plant uses hydraulic pressure quick opening structure.
2, The max-working extraction pressure of the equipment is 320bar, max-working extraction temperature is 70℃,and
the effective volume of the material basket is 600L.
3, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
4, The extract, separate pressure and temperature can be automatic and remote controlled by PLC.
5, Lower Production Cost:The equipment could save customer 20% energy consumption.
6, Turnkey Service:GAWEE has rich design, manufacture experience, and can provide customized one-to-one service.
No. | Type | Specification | Pressure | Flow | Area | Height |
Capacity of raw material |
1 | 5L+1L | two extractors two separators | 500bar | 60L/H | 10 m2 | 2.5 m | testing purpose |
2 | 10L | three extractors two separators | 500bar | 100L/H | 10 m2 | 3 m | 10 to 20 kg |
3 | 25LX3 | three extractors two separators | 350bar ~ 750bar | 300L/H | 20 m2 | 4.5 m | 50 to 150 kg |
4 | 50LX3 | three extractors two separators | 350bar ~ 750bar | 600L/H | 80 m2 | 5.5 m | 0.1 to 0.3 ton |
5 | 100LX3 | three extractors two separators | 350bar ~ 750bar | 1000L/H | 130 m2 | 7 m | 0.2 to 0.6 ton |
6 | 200LX3 | three extractors two separators | 350bar ~ 750bar | 1500L/H | 200 m2 | 8.5 m | 0.5 to 1.2 ton |
7 | 300LX3 | three extractors two separators | 350bar ~ 750bar | 2500L/H | 300 m2 | 9 m | 0.7 to 2 ton |
8 | 400LX3 | three extractors two separators | 350bar ~ 750bar | 3500L/H | 400 m2 | 9.5 m | 1 to 2.5 ton |
9 | 500LX3 | three extractors two separators | 350bar ~ 750bar | 4000L/H | 450 m2 | 10 m | 1 to 3 ton |
10 | 600LX3 | three extractors two separators | 350bar ~ 750bar | 4000L/H | 500 m2 | 10 m | 1.5 to 3.5 ton |
11 | 800LX3 | three extractors two separators | 350bar ~ 550bar | 6000L/H | 540 m2 | 12 m | 2.5 to 4.5 ton |
12 | 1000LX3 | three extractors two separators | 350bar ~ 550bar | 8000L/H | 540 m2 | 14 m | 3 to 6 ton |
13 | 1500LX3 | three extractors two separators | 350bar ~ 550bar | 15000L/H | 600 m2 | 14 m | 3.5 to 8 ton |
14 | 2000LX3 | three extractors two separators | 350bar ~ 550bar | 15000L/H | 600 m2 | 16 m | 5 to 12 ton |
15 | 3500LX3 | three extractors two separators | 350bar ~ 550bar | 25000L/H | 700 m2 | 16 m | 8 to 18 ton |
16 | 5000LX3 | three extractors two separators | 350bar ~ 550bar | 25000L/H | 800 m2 | 16 m | 12 to 24 ton |
