9.5m 450KW 480m2 Supercritical CO2 Extraction Equipment

Minimum Order Quantity : 1set Price : 1,420,000USD
Packaging Details : Metal frame and tin packaging Delivery Time : 180 days for design and manufacture, 30 days for packaging and shipping, 60 days for installation and commissioning
Payment Terms : T/T, L/C Supply Ability : 20 sets per year
Place of Origin: Zunyi City,China Brand Name: Supercritical CO2 Extraction Machine
Certification: ASME、CE、PED Model Number: SCE 600L-3-350

Detail Information

Basic Component: 3 Extractors, 2 Separators Working Pressure: ~400bar
Working Temperature: ~70℃ Power: 450KW
Area: 480m2 Height: 9.5m
Flow: 4000L/h
High Light:

450KW supercritical CO2 extraction equipment

,

480m2 supercritical CO2 extraction equipment

,

9.5m co2 oil extraction machine

Product Description

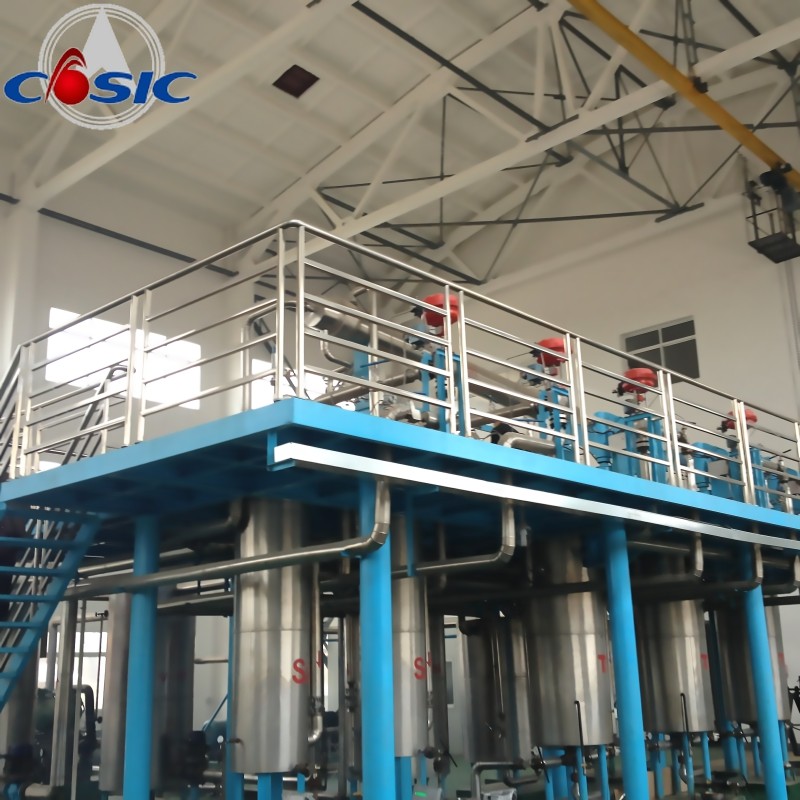

600L×3 Ginger Oil Supercritical CO2 Extraction Machine



The plant of 600L×3 is three extractor two separator SCFE device, the working medium is CO2, which can be reused. The extract, separate pressure and temperature can be automatic and remote controlled by computer. The extractors can work with the way of series, parallel and single. The series valves on the import and export of each extractor can be manual controlled, the highest working pressure control method of each extractor during working is by the use of pressure transmitter, safety valve and control signals. It is safety and reliable. The extractor cover of this plant uses hydraulic pressure quick opening structure. The metal contact with material of this plant, such as container inner surface, pipe, valve and so on. All of them are manufactured with stainless steel which has the characters of anti-sour and anti-alkali and satisfy food hygiene demand.

The max design pressure of this plant is 450bar, the highest working pressure is 400bar, We will strict carry out the related national standard and rule demand during design, manufacture, test, installation and commissioning.

The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature, outside is thin stainless steel, which will make our device beauty.



1, The CO2 SFE plant is a high-pressure systematic device which changes the CO2 between its gas, liquid and supercritical state for extraction and separation of materials and for process of system circulation.

2, No use of organic solvent, hence no pollution of extracts.
3, Operation at low temperature, hence no damage to natural active components.
4, High selectivity of extracts. High concentration of components.
5, Easy separation of CO2 from extracts.
6, No discharge of solid waste, waste gas or waste water.

7, It is widely used in Pharmaceutical, cosmetics, food, health products, new materials and other fields.

8, The maximum working pressure of the equipment is 320bar, maximum working temperature is 70℃and the effective volume of the material basket is 600L.

9, PLC control system, automatic temperature and pressure control.
