9m 400L×3 Yolk Lecithin CO2 Fluid Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame & skin package Delivery Time : 90 days
Payment Terms : T/T Supply Ability : 20sets per year
Place of Origin: China Brand Name: Essential Oil Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 400L-3-450

Detail Information

Extractors: 480L,450bar,3sets Separators: 200bar,2sets
Pressure: ~450bar Temperature: ~85℃
Flow: 2500L/h Power: 400kw
Capacity: 1000-1500kg/24h Area: 300m2
Height: 9m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

400L×3 CO2 Fluid Extraction Machine

,

9m CO2 Fluid Extraction Machine

,

9m co2 oil extraction machine

Product Description

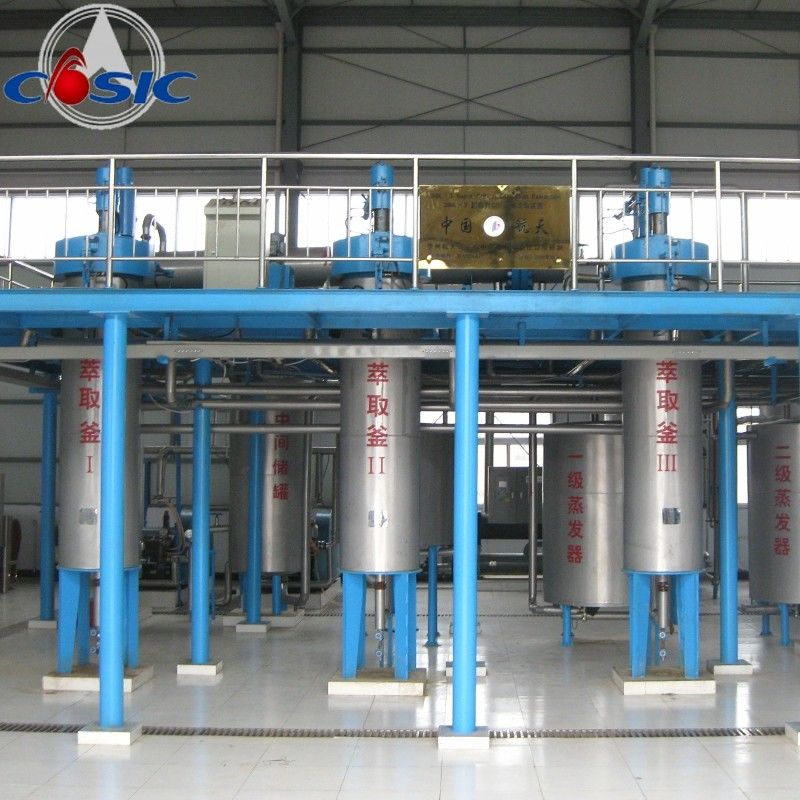

400L×3 Yolk Lecithin Supercritical CO2 Extraction Machine



Device Description:

The SCFE machine can efficiently extract the Yolk Lecithin from Egg Yolk,green and pollution-free,and the product quality

is the best.

GAWEE has provided more than 300 sets industrial-scale and dozens of pilot-size devices home and abroad.

The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.

The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.


1, The extractor cover of this plant uses hydraulic pressure quick opening structure.
2, The max-working extraction pressure of the equipment is 400bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 400L.
3, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
4, The extract, separate pressure and temperature can be automatic and remote controlled by PLC.

5, Provide Turnkey Service:GAWEE has rich design, manufacture experience, and can provide customized one-to-one service.


SCFE Advantage:
1, No use of organic solvent, hence no pollution of extracts.
2, Operation at low temperature, hence no damage to natural active components.
3, No discharge of solid waste, waste gas or waste water.
4, High selectivity of extracts.

5, High concentration of components.
6, Easy separation of CO2 from extracts.
