Tea Seed Oil Supercritical CO2 Extraction Machine 600L/H 180kw
Contact Person : Francis Li
Phone Number : +86 15085632682
WhatsApp : +8615085632682
|Minimum Order Quantity :||1set||Price :||Negotiable|
|Packaging Details :||Metal frame & skin package||Delivery Time :||180 days for design and manufacture, 30 days for packaging and shipping, 90 days for installation and commissioning|
|Payment Terms :||T/T||Supply Ability :||20 sets per year|
|Place of Origin:||Zunyi City China||Brand Name:||1500L×3 Supercritical CO2 Extraction Machine|
|Certification:||ASME CE PED||Model Number:||SCE 1500-3-350|
|Height:||14m||Material:||The Part In Contact With CO2 And Water Is 304 Stainless Steel 1sets|
ASME carbon dioxide extraction machine,
350bar carbon dioxide extraction machine,
350bar supercritical CO2 extraction equipment
1500L×3 Sea Buckthorn Oil Supercritical CO2 Extraction Machine

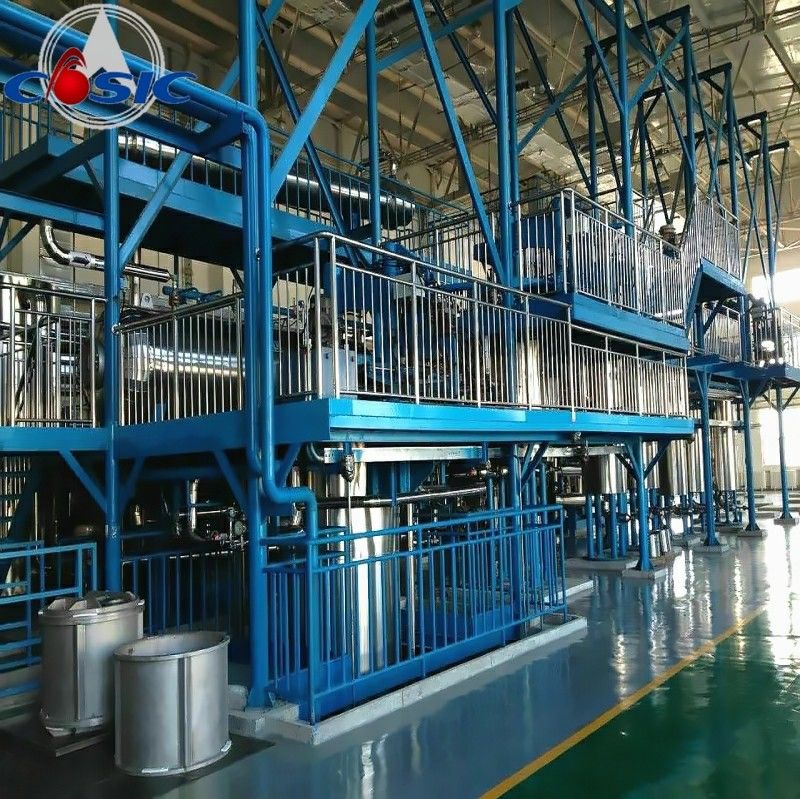

The plant of 1500L×3 is three extractor two separator SCFE device, the working medium is CO2, which can be reused. The extract, separate pressure and temperature can be automatic and remote controlled by computer. The extractors can work with the way of series, parallel and single. The series valves on the import and export of each extractor can be manual controlled, the highest working pressure control method of each extractor during working is by the use of pressure transmitter, safety valve and control signals. It is safety and reliable. The extractor cover of this plant uses hydraulic pressure quick opening structure. The metal contact with material of this plant, such as container inner surface, pipe, valve and so on. All of them are manufactured with stainless steel which has the characters of anti-sour and anti-alkali and satisfy food hygiene demand.
The max design pressure of this plant is 350bar, the highest working pressure is 320bar, We will strict carry out the related national standard and rule demand during design, manufacture, test, installation and commissioning.
The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature, outside is thin stainless steel, which will make our device beauty.
1, The CO2 SFE plant is a high-pressure systematic device which changes the CO2 between its gas, liquid and supercritical state for extraction and separation of materials and for process of system circulation.
2, No use of organic solvent, hence no pollution of extracts.
3, Operation at low temperature, hence no damage to natural active components.
4, High selectivity of extracts. High concentration of components.
5, Easy separation of CO2 from extracts.
6, No discharge of solid waste, waste gas or waste water.
7, It is widely used in Pharmaceutical, cosmetics, food, health products, new materials and other fields.
8, The volume of extraction basket is 1500L.
