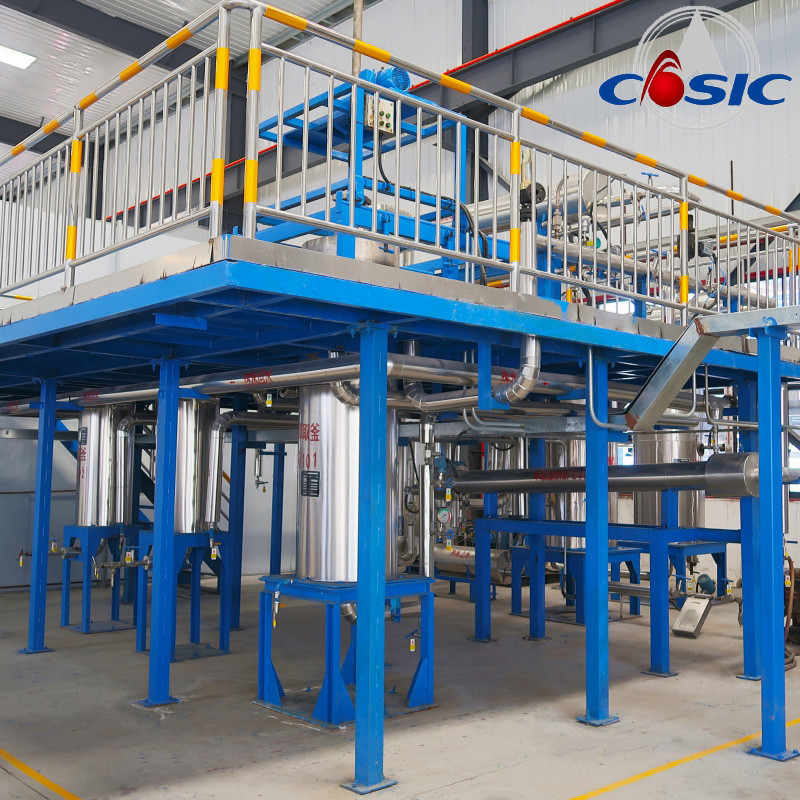

Natural Astaxanthin Co2 Oil Extraction Machine 600L/H For Pharmaceuticals

Minimum Order Quantity : 1sets Price : Negotiable
Packaging Details : Metal frame & skin package Delivery Time : 90 days
Payment Terms : T/T Supply Ability : 20 sets per year
Place of Origin: China Brand Name: 100L×3 SCE Machine
Certification: ASME CE PED Model Number: SCE 100L-3-750

Detail Information

Extractors: 120L 750bar,3sets Separators: 50L 200bar,2sets
Pressure: ~750bar Temperature: ~85℃
Flow: 600L/h Power: 240kw
Capacity: 200-300kg/24h Area: 150m2
Height: 7m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

Natural Astaxanthin Co2 Oil Extraction Machine


CO2 Extraction Machine 600L/h


Pharmaceuticals CO2 Extraction Machine

Product Description



Device Description:
The supercritical CO2 fluid extraction(SCFE) machine can effectively extract Pure Natural Astaxanthin from Algae.
1, The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.
2, The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.
3, The extractor cover of this plant uses hydraulic pressure quick opening structure.
4, The max-working extraction pressure of the equipment is 700bar, max-working extaction temperature is 70℃,and
the effective volume of the material barrel is 100L.
5, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
6, The extract, separate pressure and temperature can be automatic and remote controlled by PLC.


SCFE Advantage:

1, No use of organic solvent, hence no pollution of extracts.

2, High selectivity of extracts. High concentration of components.
3, Operation at low temperature, hence no damage to natural active components.
4, No discharge of solid waste, waste gas or waste water.
5, Easy separation of CO2 from extracts.
