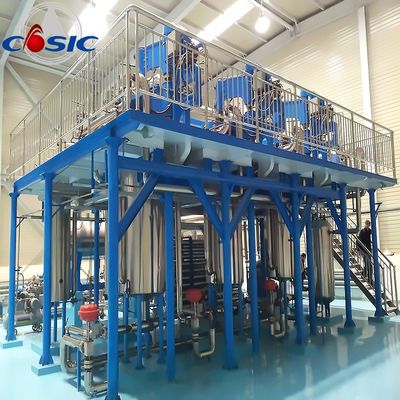

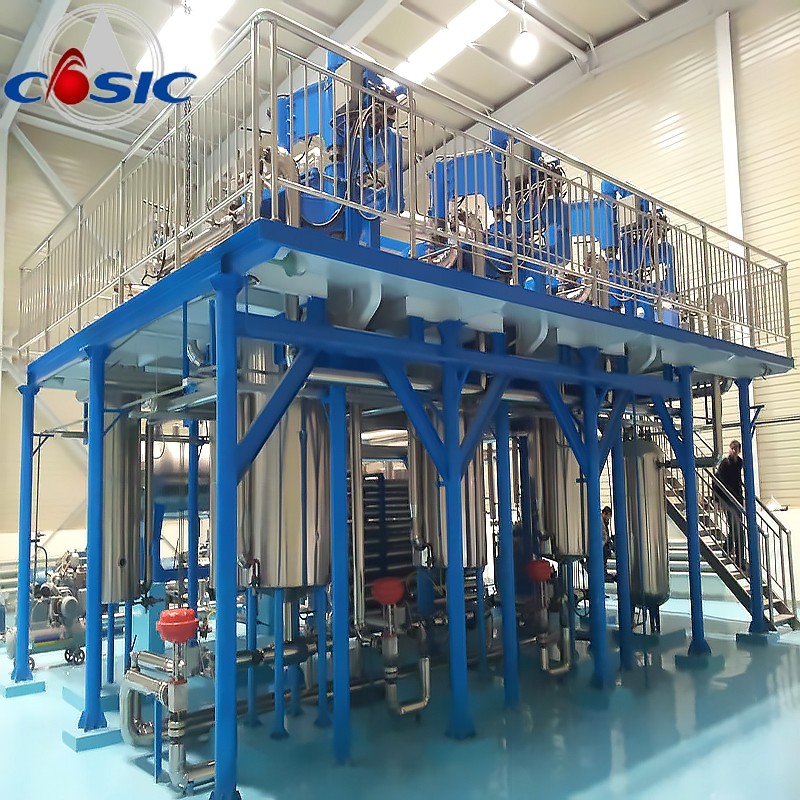

Supercritical Carbon Dioxide Extraction Machine 4000L/H For Cosmetics

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame and tin packaging Delivery Time : 90days
Payment Terms : T/T Supply Ability : 20 sets per year
Place of Origin: China Brand Name: Supercritical CO2 Extraction Machine
Certification: ASME、CE、PED Model Number: SCE 600L-3

Detail Information

Basic Component: 3 Extractors, 2 Separators Working Pressure: 320-700 Bar
Working Temperature: ~70℃ Power: 350-900 KW
Area: 480m2 Height: 9.5m
Flow: 4000L/h
High Light:

Supercritical Carbon Dioxide Extraction Machine


Carbon Dioxide Extraction Machine 4000L/H


Cosmetics Carbon Dioxide Extraction Machine

Product Description

The SCFE machine can efficiently extract the effective ingredients from natural and pollution-free,

and the product quality is the best.


Device Description:
1, The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.
2, The SCFE machine is a high-pressure systematic device which changes the CO2 between its gas, liquid
and supercritical state for extraction and separation of materials and for process of system circulation.
3, The extractor cover of this plant uses hydraulic pressure quick opening structure.
4, The max-working extraction pressure of the equipment is ≤700bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 600L.
5, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to keep temperature,
outside is thin stainless steel, which will make our device beauty.
6, The extract, separate pressure and temperature can be automatic and remote controlled by PLC.
7. Provide Turnkey Service:GAWEE has rich design, manufacture experience, and can provide customized one-to-one service.

8. Superior Cost-performance Ratio:The price is only 30% to 50% compared with other international brands.

9. Lower Production Cost:The equipment could save customer 20% energy consumption.

10. GAWEE has provided more than 300 sets industrial-scale and dozens of pilot-size devices home and abroad.

SCFE Advantage:
1, No use of organic solvent, hence no pollution of extracts.
2, Operation at low temperature, hence no damage to natural active components.
3, No discharge of solid waste, waste gas or waste water.
4, High selectivity of extracts. High concentration of components.
5, Easy separation of CO2 from extracts.



Supercritical Carbon Dioxide Extraction Machine 4000L/H For Cosmetics 0
