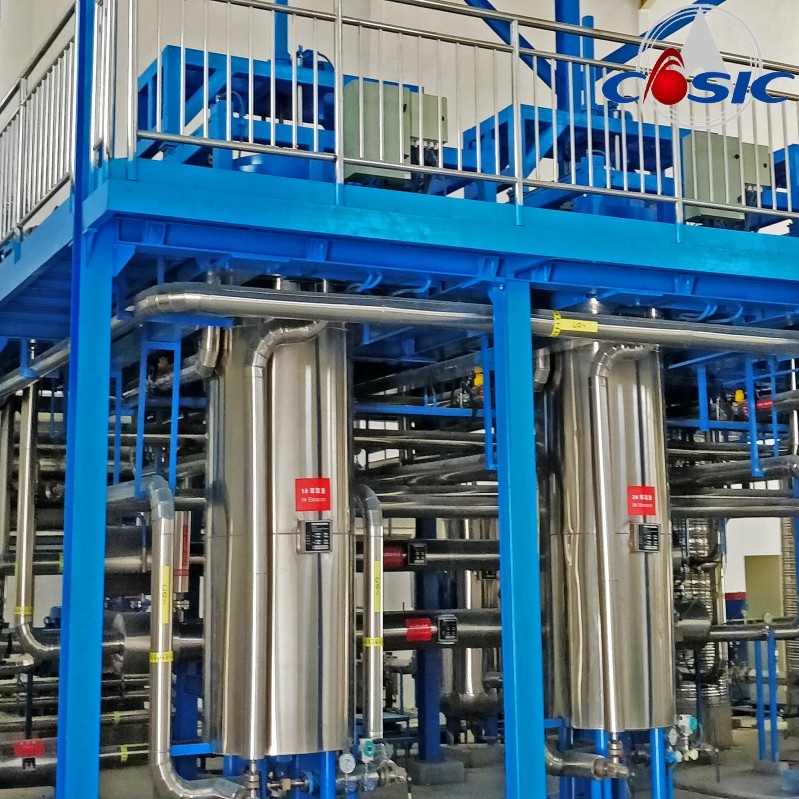

9m 360m2 1200L Supercritical CO2 CBD Extraction Machine

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Metal frame & skin package Delivery Time : 90days
Payment Terms : T/T Supply Ability : 20sets per year
Place of Origin: Zunyi City China Brand Name: Essential Oil Supercritical CO2 Extraction Machine
Certification: ASME CE PED Model Number: SCE 400L-3-550

Detail Information

Extractors: 480L,550bar,3sets Separators: 200bar,2sets
Pressure: ~550bar Temperature: ~85℃
Flow: 2500L/h Power: 500kw
Capacity: 1000-1500kg/24h Area: 360m2
Height: 9m Material: The Part In Contact With CO2 And Water Is 304 Stainless Steel
High Light:

9m CO2 CBD Extraction Machine

,

1200L CO2 CBD Extraction Machine

,

360m2 supercritical co2 extraction system

Product Description

400L×3 CBD Supercritical CO2 Extraction Machine



Introduction:

The SCFE machine can effectively extract CBD oil from cannabis.

Green & environmentally friendly extraction process.

Excellent product quality.



1, No use of organic solvent, no pollution of extracts.
2, Operation at low temperature, no damage to natural active components.
3, No discharge of solid waste, waste gas or waste water.
4, High selectivity of extracts, high concentration of components.
5, Easy separation of CO2 from extracts.



Products Description:

1, The SCFE technology is widely used in pharmaceutical, cosmetics, food, health products, new materials and
other fields.
2, The SCFE machine is a high-pressure systematic device which changes the CO2 between liquid, supercritical state

and gas for extraction and separation of materials and for process of system circulation.CO2 can be recycled and reused.
3, The extractor adopts pneumatic and electric quick opening structure, which is stable and clean.
4, The max-working extraction pressure of the equipment is 500bar, max-working extraction temperature is 70℃,and
the effective volume of the material barrel is 400L.
5, The rubber and plastic foam material are used on all pressure vessels and pressure pipes to preserve heat.
The outermost layer is wrapped with stainless steel skin to ensure the beauty of the equipment.

6, The machine is controlled remotely and automatically by PLC.



Products Type:

9m 360m2 1200L Supercritical CO2 CBD Extraction Machine 0
